RS PRO Impulse Counter Counter, 6 Digit, 10Hz, 24 V dc, Счетчик

RS PRO 6 Digit, Counter, 10 Hz, 24 V DC

This impulse counter from RS PRO is suitable for a wide range of tallying applications, from test instruments and business machines to measuring devices.

Originally designed to measure frequency and time in the form of impulse clocks, electronic device timers and frequency counters, impulse counters have evolved a little since then. Today's models are able to tally almost any circuit-based event.

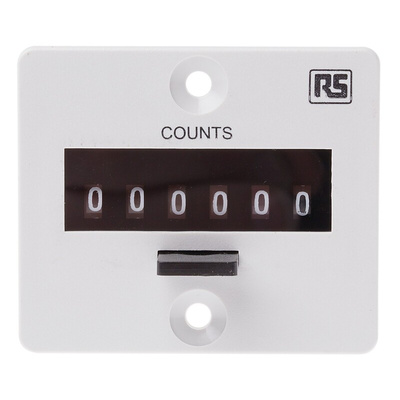

This impulse counter has a 6-digit display and can be reset manually by pushing the button on the front panel. The tough construction is IP30-rated for protection against tools and wires up to 2.5 mm.

This model has three different mounting options – panel mount (recommended) and bail and base mounting. Its compact size makes it a great space-saving option.

This quality product from RS PRO has been stringently tested, assuring you a high degree of accuracy and reliability for all your counting needs.

Features and Benefits

• Impulse counter
• Electronic meter
• Supply voltage of 24 V DC
• Pulse count mode
• Voltage input type
• Impulse display type
• Terminal strip connection type
• Six digits (digit height of 4 mm)
• Manual reset method
• Panel mounting
• Maximum count frequency of 10 Hz
• Measurement range of 0 to 999999
• Cutout size of 50.8 mm x 25.7 mm
• Depth of 63.2 mm
• Minimum operating temperature of -5°C
• Maximum operating temperature of +50°C
• IP30-rated for protection from tools and wires greater than 2.5 mm
• CE and RoHS (Restriction of Hazardous Substances) approved

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
