RS PRO Impulse Counter Counter, 6 Digit, 10Hz, 24 V dc, Счетчик

RS PRO, 6 Digit, Mechanical, Digital Counter, 10 Hz, 24 V dc

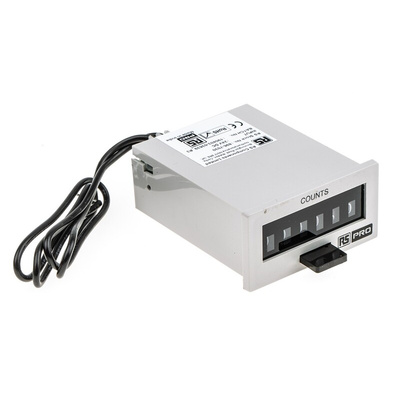

This 6-digit electromechanical impulse controller from the RS PRO range is a digital counter that can be used for a wide range of tallying applications.

Digital counters were originally designed to measure frequency and time and first appeared in the form of digital clocks, frequency counters and electronic device timers. Their programming has expanded over the years to the point that they can now tally almost any digital (or circuit-based) event.

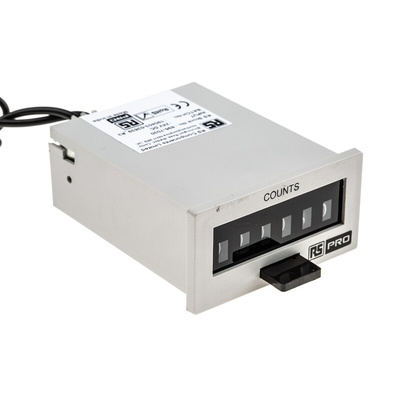

This counter has a 6-digit mechanical display and a push-button for a quick reset. It comes in a compact and robust design with 2.5 millimetres of protection against foreign tools and wires (IP30 rating).

It’s easy to install thanks to a handy panel mount complete with additional bail and base mounting options. Offering high accuracy and reliability, you can use this counter with machine tools, test instruments and measuring devices.

Features and Benefits

• Supply voltage of 24 V dc
• Pulse count mode
• Voltage input type
• Six digits

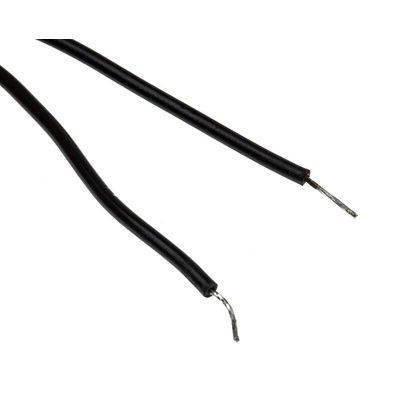

• Flying lead connection type
• Manual reset method
• Panel mounting
• Maximum count frequency of 10 Hz
• Measurement range of 0 to 999999
• Maximum operating temperature of +50°C
• Minimum operating temperature of -5°C
• CE and RoHS (Restriction of Hazardous Substances) approved
• Cutout size 50.8 mm x 25.7 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS PRO Datasheet
