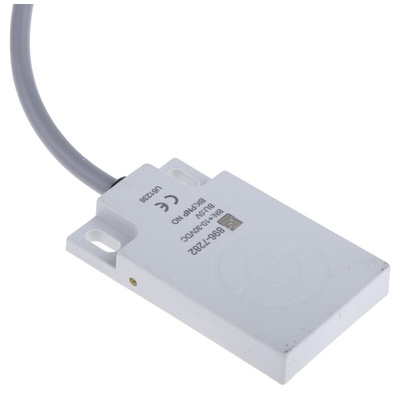

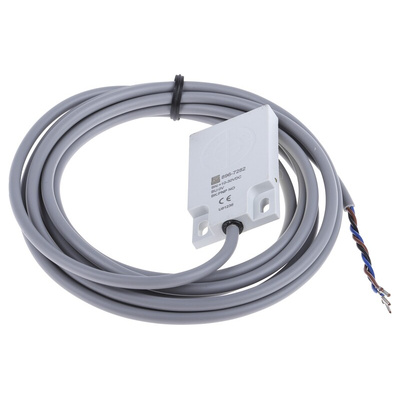

RS PRO Capacitive Block-Style Proximity Sensor, 8 mm Detection, PNP Output, 10 → 30 V dc, IP67, Датчик

RS PRO Capacitive Sensor - Block, PNP Output, 8 mm Detection, IP67, Cable Terminal

Use this capacitive sensor from RS PRO to detect the presence of both metallic and non-metallic objects without making physical contact. The proximity sensor uses an electrical field to identify materials that are conductive or have a higher dielectric constant than air.


The robust PBT (polybutylene terephthalate) material means that the unit is resistant to both chemicals and heat, so you can use it in a wide range of demanding industrial environments. It has an Ingress Protection (IP) rating of IP67, so it's dust-tight and can withstand temporary immersion in water. For additional peace of mind, this sensor has reverse polarity and short circuit overload protection. This protects your equipment in the event of faulty wiring.

Features and Benefits

• Block body style


• Detection range of 8 mm


• Dimensions of 50 (length) x 30 (width) x 7 mm (depth)


• PBT (polybutylene terephthalate) housing material


• IP (Ingress Protection) rating of IP67


• Operating temperature range of -10°C to +55°C


• Non-flush mounting style


• Output type of PNP (Positive Negative Positive)


• Reverse polarity protection


• Capacitive sensor technology


• Shielded


• Short circuit overload protection


• Conforms to CE (Conformité Européenne) and IEC (International Electrotechnical Commission) standards


• Supply voltage of 10 to 30 V DC


• Switching current of 200 mA


• Switching frequency of 30 Hz

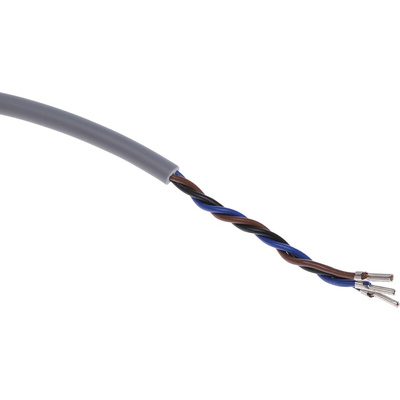

• Cable terminal type
