RS PRO Optical Fibre Sensor NPN-NO, PNP-NC Output, IP65, 12 → 24 V DC

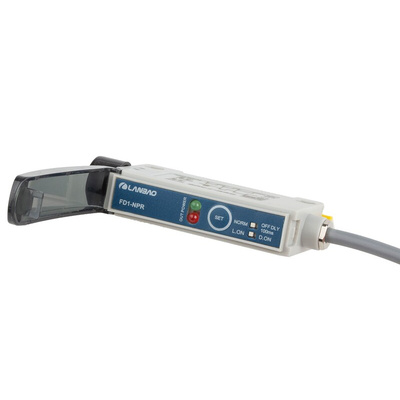

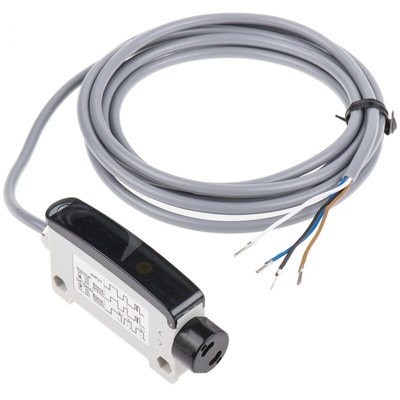

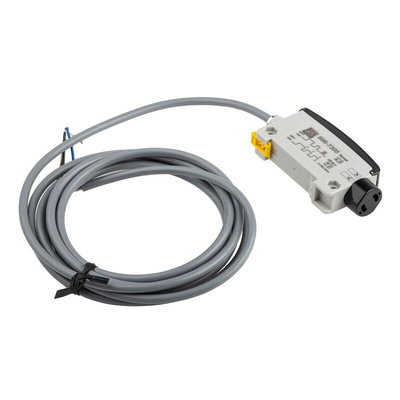

Fibre optic sensors from the RS PRO range can be used in a number of different industrial sensing applications to measure acceleration, mechanical strain and more. This fibre optic sensor has a fibre cable connected to a light source. The 65 mm-long cable is small enough to allow you to access hard-to-reach spaces.

Sensing distance can be set on the product so it’s suitable to use in specific scenarios such as an automotive factory or working within a computer network. It features reverse polarity, shock, overload and short-circuit protection to ensure effective and consistently high performance.

The sensor performs best between a minimum operating temperature of -10°C and a maximum operating temperature of +55°C. The transparent plastic housing also has a rating of IP65, meaning performance will not be impacted by dust or water.

Features and Benefits

• Fibre-optic sensor

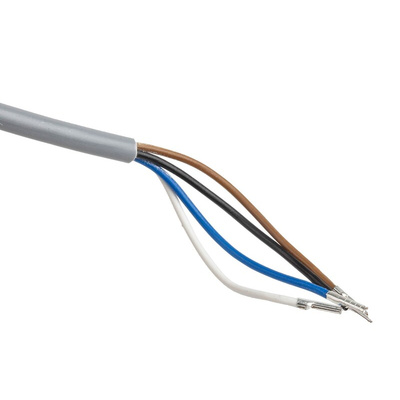

• PVC cable electrical connection
• Response Time <
1 ms
• PVC cable electrical connection
• Length of 65 mm
• Minimum operating temperature of -10°C
• Maximum operating temperature of +55°C
• Housing material of ABS (acrylonitrile butadiene styrene), PC (polycarbonate)
• Red LED light source
• Cable mounting type
• CE (Conformité Européenne or European Conformity) standards met
• Depth of 35 mm
• Width of 14.5 mm
• IP65 rating
• Dimensions of 65 x 14.5 x 35 mm
• Output type of NPN-NO, PNP-NC
• Switching frequency of 50 Hz
• Supply votage of 12 to 24 V DC
