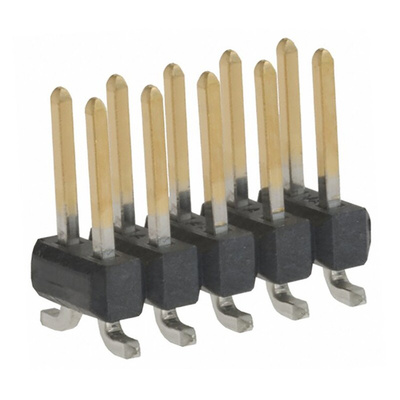

1591-0100, Molex C-Grid Series Straight Surface Mount Pin Header, 10 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded

Molex C-Grid 2.54mm Pitch Header, Surface Mount - 71308 Series

71308 series C-Grid 2.54 mm pitch SMT dual row stackable board to board breakaway headers with gold plated contacts and black UL94V-0 thermoplastic housings. These 2.54mm C-Grid breakaway headers are suitable for use in low power signal applications such as computers, medical instruments and automotive controls.

Molex Pin Header, Surface Mounting, 3A Current Rating - C-Grid Series - 1591-0100

Need to make multiple connections to your PCB? Grow your network with this pin header from Molex. It has 10 contacts, so your circuit board can carry out multiple jobs at once. The narrow pitch of 2.54mm saves space in cramped setups. This unit's made from flame-retardant thermoplastic material, so it self-extinguishes in under 10 seconds if there's a fire.

Features & Benefits

• Gold-plated contacts are resistant to corrosion in humid conditions
• Copper alloy contacts are highly conductive for reliable performance
• Straightforward solder termination method creates a strong bond
• 250V AC/DC voltage rating suits low-power applications

Applications

• Industrial automation
• Medical equipment
• Automotive manufacturing

How does solder termination work?

Soldering is a process that joins two components together by melting over a metal alloy. It's a quick process that's used to create strong connections in circuits.

2.54mm Molex C-Grid/SL Series

C-Grid 2.54mm SMT PCB header,10 way

Line Drawing

Application Specification Sheet - 1591-0100

Specification Sheet - 1591-0100
