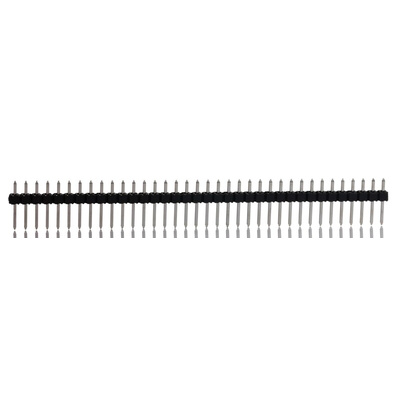

2228-4360, Molex KK 254 Series Straight Through Hole Pin Header, 36 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded, Штыревой разъем

Molex KK Vertical Header, 42375 Series

The 42375 Series KK 254 vertical headers are designed to be used in signal wire-to-board and board-to-board applications. They are single row, vertical orientation and designed for through-hole mounting.

Voltage rating: 250 volts
Operating temperature: -40 to 105 C

Standards

UL- E29179, CSA- LR19980

Molex Pin Header, 4A Maximum Current Per Contact, 6.09mm Mating Pin Length - 42375 Series - 2228-4360

Want to make speedy connections to a printed circuit board? This Molex pin header does the trick. After soldering it to your PCB, you can wire circuits up to it by attaching a compatible female header via its 36 built-in pins. The unit's designed to handle up to 25 mating cycles, meaning it's a durable piece of kit. Thanks to an operating temperature range between -40°C and +80°C, you can trust it holds its own in challenging environments.

Features & Benefits

• Light weight of 2.2g doesn't put a strain on your PCB
• Maximum voltage rating of 500V assures you it's safe to use in powerful electrical systems
• Through-hole mounting style achieves a secure connection

Applications

• Telecommunications sector
• Automotive industry
• Medical equipment

How many pin headers come in a pack?

This product comes in a pack of 5 to make sure you have plenty in supply.

KK 254 2.54mm breakaway PCB header,36 way

Line Drawing

Datasheet - 2228-4360
