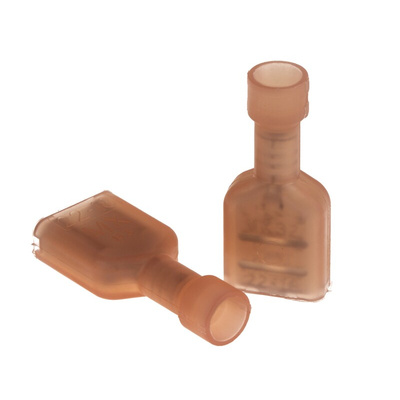

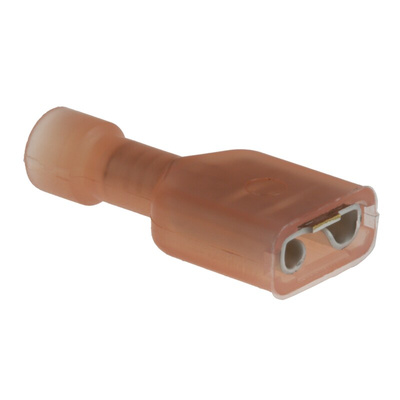

19003-0001, Molex InsulKrimp 19003 Red Insulated Female Spade Connector, Receptacle, 6.35 x 0.81mm Tab Size, Обжимной контакт

Molex InsulKrimp™ Female Quick Disconnect Terminals

These female nylon or PVC crimp receptacles are fully insulated, made from brass with a tin plating and also available in various colours and wire sizes.

Terminal cut off location
Wire stop
Nylon 6/6 or PVC
Straight mounting angle

Approvals

CSA, UL

Molex Red Insulated Female Spade Connector, 6.35 x 0.81mm Tab Size, 22 to 18AWG - InsulKrimp19003 Series - 19003-0001

Use this female spade connector from Molex to easily attach and remove your electronic hardware. When used with a male spade connector (822-1034), it lets you quickly and easily connect two wires. Its robust brass contacts are tin-plated to combine high conductivity with corrosion resistance, so it's suitable for use in humid environments. This component supports wire sizes between 22 and 18AWG, which means it's ideal for many smaller wiring tasks.

• Nylon housing insulates against current leakage for operator safety and an efficient connection
• Straight wire mounting angle easily slots into your wiring system to save space
• Very broad operating temperature range of -65° to +105°C for use in harsh industrial conditions
• Distinctive red exterior allows for easy colour-coding with compatible wire sizes

Applications

• Wiring maintenance and repair
• Residential power networks
• Consumer electronics industry

What kinds of wires can I use this spade connector with?

This connector attaches to wires using the crimping technique. This means it's only suitable for use with wires that have stranded conductor cores.

InsulKrimp crimp receptacle,18-22 AWG
