43061-0003, Molex, SPOX Female Connector Housing, 3.96mm Pitch, 3 Way, 1 Row, Корпус разъема

Molex 3.96mm SPOX® Crimp Receptacle Housings

3.96mm SPOX® series wire to board crimp receptacle housings made from UL94V-0 polyester with friction locking and polarization keys for secure and accurate mating. These 3.96mm SPOX® female crimp housings are for use with series SPOX® crimp terminals which need to be purchased separately, see stock number 670-5234 typically and mate with 3.96mm pitch SPOX® or KK® series PCB headers.

Molex Connector Housing, Cable Mounting, 13.02mm Width - SPOX Series - 43061-0003

Put your circuit under wraps in a harsh setting with this Molex connector housing. As it's made of robust glass-filled polyester, it takes impacts without buckling to shield sensitive conductors against knocks. The material is resistant to corrosion too, so it's built to last a long time. Organising lots of connections at once is fuss-free, thanks to the three contact ports. The housing's polarising key means lining it up with its receptacle is no problem and ensures proper mating every time.

Features & Benefits

• Fixes to a socket to prevent wobbling or vibration and ensure a reliable connection
• Pitch of just 3.96mm to slot onto a busy board
• Comes in a pack of 5, so you have spares on hand

Applications

• Data and control centres
• PCB systems
• Packaging industry

What terminal is this connector housing compatible with?

It's designed to give you a reliably accurate fit with Molex female crimp terminals (such as 670-5234).

3.96mm Molex SPOX Range

The SPOX range has a terminal which is like a "spring box". This design enables multiple points of contact which protects the mating interface area and also prevents fish-hooking from wires during handling.

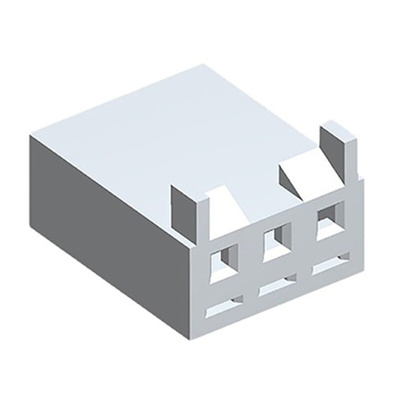

SPOX 3.96mm female crimp housing, 3 way

Line Drawing
