43061-0006, Molex, SPOX Female Connector Housing, 3.96mm Pitch, 6 Way, 1 Row, Корпус разъема

Molex 3.96mm SPOX® Crimp Receptacle Housings

3.96mm SPOX® series wire to board crimp receptacle housings made from UL94V-0 polyester with friction locking and polarization keys for secure and accurate mating. These 3.96mm SPOX® female crimp housings are for use with series SPOX® crimp terminals which need to be purchased separately, see stock number 670-5234 typically and mate with 3.96mm pitch SPOX® or KK® series PCB headers.

3.96mm Molex SPOX Range

The SPOX range has a terminal which is like a "spring box". This design enables multiple points of contact which protects the mating interface area and also prevents fish-hooking from wires during handling.

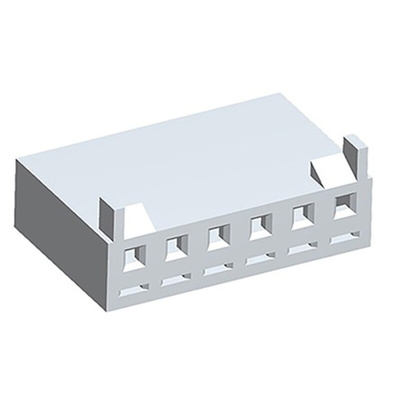

SPOX 3.96mm female crimp housing, 6 way

Line Drawing
