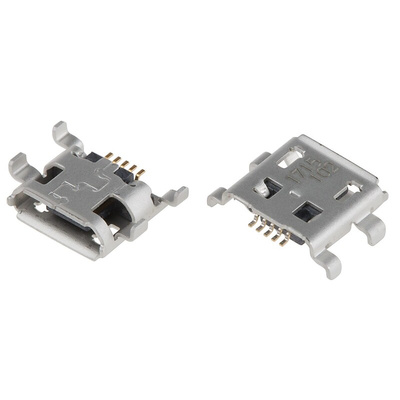

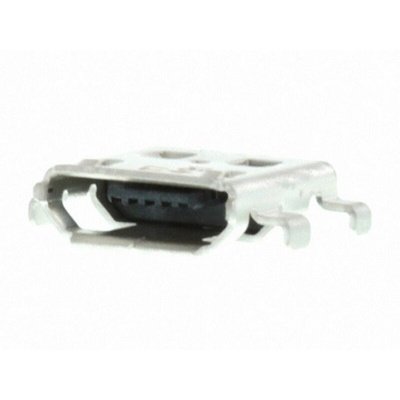

47642-0001, Molex Right Angle, Through Hole, Socket Type Micro B 2.0 USB Connector, Разъем

Molex 0.65 mm Pitch micro USB Connectors

0.65 mm pitch micro USB Type A and Type AB connectors with a compact design, a PCB space saving footprint and a high durability of over 10000 insertion cycles. The specification of these micro USB connectors supports OTG (On-The-Go) and enable portable devices to communicate directly with each other without the need for a host computer. These micro USB receptacle connectors have a lead-in feature on the housing that enables blind mating to the cable plug. A fully shielded laser-welded stainless steel shell offers mechanical strength and EMI protection. The connector shell features latching windows with tabs for a secure connection to the mating plug assembly. The edge contact beam geometry of the connector shell facilitates high-speed data transmission. These micro USB Type A and Type AB connectors are available as top, bottom and mid-mount.

Features and Benefits

• Compact, space saving design
• High durability of over 10000 insertion cycles
• Lead-in feature on the housing for blind mating
• Laser welded stainless steel shell for mechanical strength
• Fully shielded for EMI protection
• Latching tabs for secure mating connection
• Edge contact beam geometry for high-speed data transmission

Product Application Information

These micro USB Type A and Type AB connectors are ideal for use in small portable devices. Applications include mobile phones, PDA, GPS, MP3 players, digital still and video cameras, printers, keyboards, flash drives and vehicle battery chargers.

Molex Socket Type B USB Connector, 1.8A, 30V - 47642-0001

Transfer data and power at high speeds with this USB (universal serial bus) connector from Molex. The component has a small pitch of 0.65mm, so it's practical for use on PCBs (printed circuit boards) with limited space. Its LCP (liquid crystal polymer) housing is strong and resistant to impact, making this connector a reliable choice for harsh industrial conditions. Its laser-welded stainless steel shell is durable and offers full protection from EMI (electromagnetic interference) to improve performance. With a mechanical service life of 10,000 operations, this component is reliable and long-lasting.

• Broad operating temperature range of -30°C to +85°C for use in demanding conditions
• Gold contact plating for high conductivity and resistance to corrosion
• OTG (on the go) technology lets portable devices communicate directly with each other, eliminating the need for a host computer

Applications

• Digital still and video cameras
• Personal handheld devices
• Flash drives

Is this USB connector flame-retardant?

Yes – if exposed to flames, this USB connector will stop burning within 10 seconds and won't contribute to the spread of fire in your system.

Molex Micro-USB Connectors

Micro-USB B R/A mid-mount PCB receptacle

Product Specification Sheet - MICRO-USB Connectors

Datasheet - 47642-0001
