64323-1029, Molex CP Series Female Crimp Terminal, 20AWG Min, 18AWG Max, Контакты

CMC Hybrid Connector, CP0.635 mm Terminals - 64322 Series

CP terminals for use in the CMC hyrbid connector system. These terminals are available in 1.50 mm and 0.635 mm widths and are designed to support low, medium and high current data requirements. The terminals have a 2 part design with a high conductivity copper alloy body and a stainless steel terminal box. This robust design enables the terminals to perform in high conductivity applications in harsh environments. These CP terminals are available with different platings and to suit a range of wire sizes

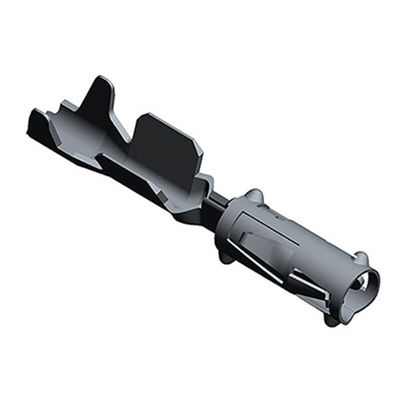

Molex CP Female Crimp Terminal, Female, 0.5 To 1mm² Wire Size - 64323 Series - 64323-1029

Maintain a reliable transfer of power between a conductor and a PCB (printed circuit board) with this female crimp terminal from Molex. Its copper-alloy body supports high electrical conductivity for superior performance., while a stainless steel terminal box offers resistance to impact and corrosion for improved component longevity. This high-density connection system is specifically designed for the transportation industry and compact PCBs where space is limited. It's compatible with the Molex CMC range of power connectors.

• Wide operating temperature range of -40°C to +125°C for safe use in extreme conditions
• Compression seal creates a reliable and durable connection point for improved workplace productivity
• Suitable to use in electrical systems with low, medium and high currents

Applications

• Automotive industry
• Agricultural equipment
• Motorbikes
• Marine and offshore industries

Can I use this crimp terminal in lighting control systems?

This versatile crimp terminal has been thoroughly tested and is safe to use in industrial and commercial lighting control systems.

Is this crimp terminal able to withstand vibration?

Yes, this Molex crimp terminal can withstand vibration without suffering any mechanical damage or micro-breaks.

Molex CMC Hybrid Connectors

CMC 1.5mm crimp socket terminal,18-20AWG
