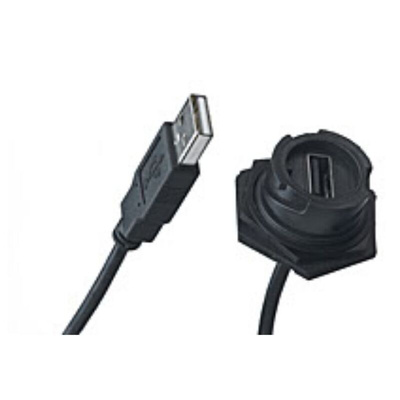

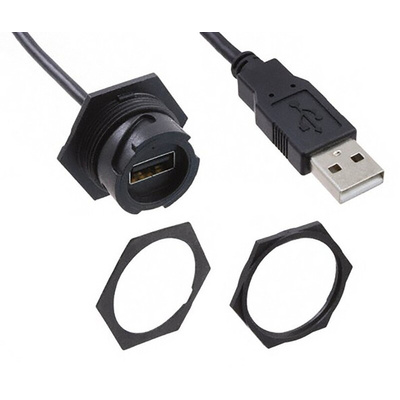

84729-0003, Molex USB 2.0 Cable, Male USB A to Female USB A USB Extension Cable, 150mm

Molex Sealed Industrial USB 2.0 Type A Plug to USB 2.0 Type A Receptacle Cordsets, 84729 Series

Overmolded sealed industrial USB 2.0 type A plug to USB 2.0 type A panel mount receptacle cordsets with a bayonet style latch receptacle for quick and easy connection, keyed housing and integral strain relief for robust pull-out resistance. These sealed industrial USB 2.0 type A cordsets have a fully shielded cable for EMI/RFI protection and an IP67 rating for use in harsh factory and commercial-vehicle applications. Typical applications for these sealed industrial USB 2.0 type A plug to USB 2.0 type A panel mount receptacle cordsets include commercial vehicles, medical equipment, and industrial applications eg bardcode scanners, factory automation, industrial controllers, robotics and test quipment

Standards

ODVA and IEC61076 compliant

Molex USB Extension Cable, 30V AC Voltage Rating, Black Sheath - 84729 Series - 84729-0003

Choose this USB extension cable from Molex for digital connectivity you can count on. Its gold-plated phosphor bronze connectors ensure a strong data connection between devices. On one end of the cable, you'll find an industrial-style USB 2.0 type-A plug that you can connect to equipment. At the other is a female USB receptacle you can panel-mount as you see fit. Use this lead to add easy data access to vehicles, automation devices and test instrumentation.

Features & Benefits

• 150mm length makes recessed connections easy
• Fully shielded for protection from EMI and RFI
• Bayonet-style latch receptacle for simple installation
• 28AWG fits easily through tight openings

Applications

• Robotics systems
• Server rooms
• Medical equipment

Is this USB extension cable waterproof?

Yes. The cable is IP67-rated, which means it's protected against high-pressure water jets and short periods of immersion up to 1m. It's also dust-proof, so is well-suited to tough industrial environments.

Type A plug to A receptacle USB cable

Specification Sheet - 84729-0003
