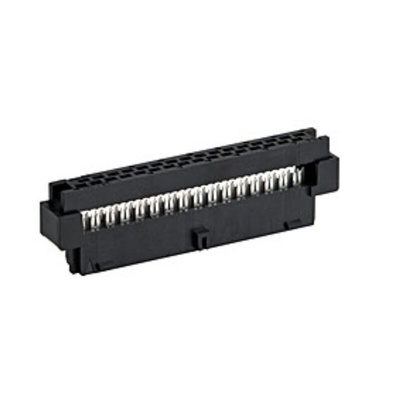

87568-1693, Molex Milli-Grid Series Straight Through Hole Mount PCB Socket, 16-Contact, 2-Row, 2mm Pitch, IDC Termination

Molex 2.00 mm Milli-Grid IDC Receptacle - 87568 Series

87568 series dual row Milli-Grid high density IDC receptacle with a 2.00 x 2.00 mm grid pattern for design flexibility. These Milli-Grid IDC receptacles feature a pre-loaded upper housing for precise cover to base alignment. Early entry single beam contacts with a long wiping action provide a reliable contact. Versions of these receptacles are available with a centre polarization key to prevent mismating, a centre locking ramp for a secure mating connection and side latches. A strain relief is available separately which provides extra cable retention.
Part numbers 87568-xx63 have a plain design
Part numbers 87568-xx73 have a centre locking ramp
Part numbers 87568-xx93 have a centre polarization key and side latch

Features and Benefits

• High density 2.00 x 2.00 mm grid design
• Pre-loaded upper housing
• Single beam contacts with a long wiping action
• Centre polarization key to prevent mismating
• Centre locking ramp for secure mating connection
• Side latches
• Strain relief available separately

Product Application Information

These Milli-Grid connectors are suitable for a wide range of wire to board signal applications. Typical applications include printers, fax machines and copiers, servers, routers and switches, automotive audio and GPS, security systems and alarms, set-top boxes and digital media players

Molex PCB Socket, 16 Positions, 2 Sockets - Milli-Grid Series - 87568-1693

Need a fuss-free way to make connections in your circuitry? Choose this PCB socket from Molex. When combined with a PCB header, it lets you join two circuit boards without the hassle of additional cabling. This socket's housed in durable polyester, so it handles the demands of industrial settings. A low weight of just ±1g means your system stays strain-free.

Features & Benefits

• Withstands harsh conditions thanks to an operating temperature range of -20°C to +85°C
• High voltage rating of 125V for use with powerful electrical applications
• Through-hole mounting type means a quick and reliable connection

Applications

• Computers and peripherals
• Measuring and analysing equipment
• Office machines

What wire size is this product compatible with?

This PCB socket is compatible with standard 28AWG wires to give you easy compatibility.

Molex 2.0 mm Milli-Grid Interconnection System

The Milli-Grid connector system is a high density connector system based on a 2 x 2 mm grid pattern offering design flexibility for board to board and cable to board applications. The Milli-Grid family of connectors consists of shrouded and unshrouded headers, single and dual row receptacles, connector housings and crimp terminals

Milli-Grid 2mm PCB IDC receptacle,16 way
