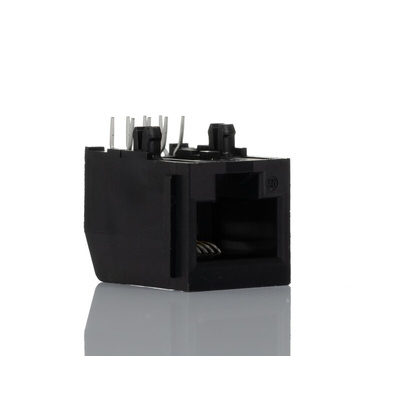

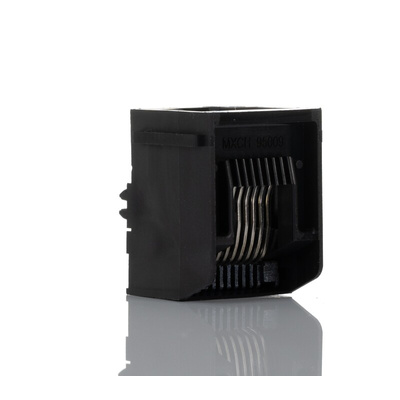

95009-7881, Molex 95009 Series Female RJ45 Connector, Through Hole, Cat3, Разъем

Molex 95009 Series Cat 3 RJ Modular Jacks with Panel Stops

95009 series Cat 3 right angle (side entry) RJ11 and RJ45 PCB Modular jacks with black UL94V-0 high temperature thermoplastic housings and gold plated contacts. These 95009 series Cat 3 RJ11 and RJ45 PCB modular jacks have a termination interface pitch of 1.27mm, PCB location and retention features and panel stops for panel mounting purposes.
For mating connectors see FCC 68 plugs

Molex RJ45 Connector, Gold Over Nickel Contact Plating, Right-Angle Orientation - 95009 Series - 95009-7881

Refresh your connection and get online with this female Ethernet connector from Molex. Set-up is easy, as the unit's a straightforward through-hole mounting type with a right-angled orientation for side entry. The contacts are made from copper alloy to resist corrosion and are plated with gold over nickel to ensure top-notch conductivity. This modular connector is compatible with Cat3 LAN cables and equipment, so you can be sure of seamless information exchange.

Features & Benefits

• Thermoplastic body stands up to high temperature conditions to prevent overheating
• Panel stops give you the option of mounting to a panel for more choice
• Compact dimensions of 20.57 (H) x 14.99 (W) x 16mm (D) to fit into busy workspaces

Applications

• Commercial office buildings
• Industrial assembly lines
• Scientific laboratories

What type of plugs can I pair with this Ethernet connector?

Match this RJ45-type female ethernet connector with a Cat3 modular male RJ45 plug.

RJ45 R/A PCB modular jack, w/panel stops

Specification Sheet - 95009-7881
