104031-0811, Molex, 104031 8 Way Push/Pull Micro SD Memory Card Connector With Push In Termination, Разъем

Molex micro SD Memory Card Connector - 104031 Series

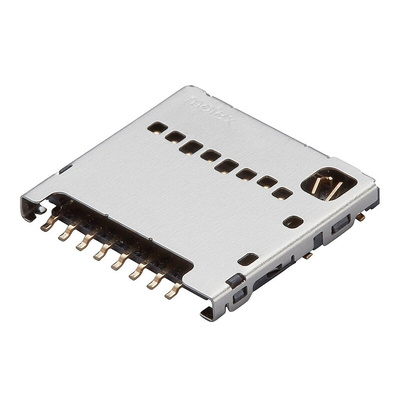

104031 series micro SD memory card connector with a 1.10 mm pitch and a low profile height of just 1.42 mm. This micro SD memory card connector has a push-pull mechanism for easy card insertion and removal. A reliable card detect switch function indicates card insertion. The metal shell of this connector has an inner lock which provides secure card retention. The terminals have an inner lead design to prevent contact stubbing and provide a reliable electrical connection. This micro SD memory card connector is designed with tight coplanarity features for high reliability during the reflow soldering process. The outer shell is made from shielded stainless steel which provides protection against EMI interference. Retention features on the connector shell provide a secure connection to the PCB.

Features and Benefits

• Low profile height of 1.42 mm
• Compact space saving design
• Push-pull design for easy card insertion and withdrawal
• Card detect switch function
• Inner lead terminal design to prevent contact stubbing
• Inner lock on shell for secure card retention
• Shielded stainless steel shell for EMI protection
• Tight coplanarity control for reliable reflow soldering
• PCB retention features

Product Application Information

This 104031 series micro SD memory card connector is ideal for use in internal mobile applications where the card function is placed under the battery pack. Applications include cell phones, digital still and video cameras, portable audio cameras, portable games, car navigation and personal navigators

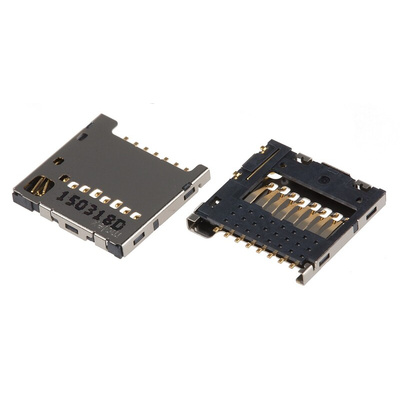

Molex 8-Way Push/Pull Micro SD Memory Card Connector, 1.1mm Pitch, 0.5A Current - 104031 Series - 104031-0811

Use this high-performance adapter from Molex to house memory cards for connection to printed circuit boards (PCB). The component is surface-mounted to the PCB via soldering, ensuring a strong, air-tight attachment. It has eight phosphor bronze contacts that are highly conductive and make sure of a reliable connection. Gold plating on the contacts protects them from corrosion, making this unit suitable for use in demanding environments. This type of component is commonly used in the computer electronics industry.

• Liquid crystal polymer housing for durability and impact resistance
• Easy push/pull insertion and removal system saves time and effort
• Wide operating temperature range of -25°C to +85°C for use in harsh environments
• Compact dimensions of 11.95 (length) x 11.4 (width) x 1.57mm (depth) for use in setups with limited space

Applications

• Portable digital cameras
• Personal computers (PCs)
• Data communication hardware

How does this connector detect the presence of a memory card?

This memory card connector has an integrated card detection switch that tells the device it's mounted on when a card is inserted or removed, making it simple to use.

Memory Card Connectors

microSD 1.10mm SMT push-pull memory card

104031-0811 - Part Details

microSD Card Connector - Brochure

Product Specification Sheet - 104031-0811
