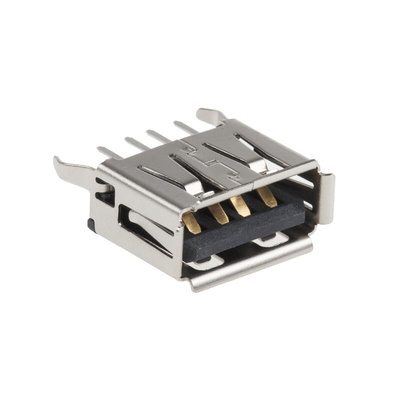

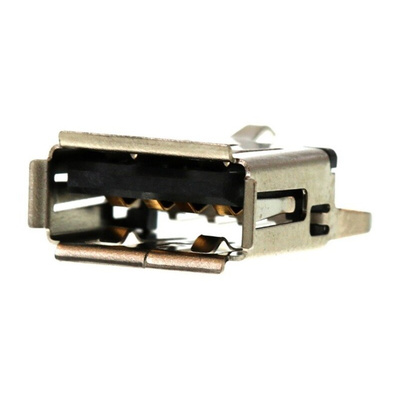

105057-0001, Molex Straight, Through Hole, Socket Type A 2.0 USB Connector, Разъем

USB PCB Receptacles

From Molex, a range of PCB mount USB Receptacles in a range of variations. These Through Hole USB Receptacles have a high temperature Nylon Glass Fibre filled UL 94V-0 housing coloured Black (unless otherwise stated) with a Tin plated copper alloy shell. This Molex range of USB receptacles is suited to various applications, such as Desktop and Notebook PC's, Keyboard, Mouse, Telephony - ISDN, PBX's, Handsets and peripherals.

Variations of Molex USB Receptacles are as follows:

USB 'A' types:
515-1945 Upright, Right Angle, kinked tabs, panel through style, without Mylar
515-2049 Upright, Right Angle kinked tabs, flange out
800-6863 Upright, Right Angle, Reverse Mount, Polyester Black
800-6848 Dual Right Angle, Polyester Black, kinked tabs, Gold Flash
800-6876 Dual, Right Angle, Polyester Black, kinked tabs, 0.76 μm Gold
800-7012 Dual, Right Angle, Polyester White, kinked tabs, Gold Flash
822-3208 Upright, Right Angle, Gold Flash
896-7579 Vertical with 3 bevelled metal pins

USB 'B' types:
515-1967 Right Angle, kinked tabs, Gold Flash
515-1989 Right Angle, kinked tabs, 0.76 μm Gold
800-6841 Right Angle, straight tabs, Gold Flash
800-6851 Right Angle, straight tabs, 0.76 μm Gold
800-6857 Right Angle, kinked Tabs, 0.76 μm Gold
800-6860 Right Angle, Polyester White, Kinked Tabs, Gold Flash

Molex Through-Hole Socket Type A 2.0 USB Connector, 1.5A, 30V - 105057 Series - 105057-0001

Connect computers and other peripheral devices to your PCBs (printed circuit boards) with this USB (universal serial bus) connector from Molex. It has copper-alloy contacts that are durable and highly conductive, so they maintain a reliable connection. High-temperature glass-filled nylon housing provides thermal and impact resistance, so the unit is a practical option for use in harsh environments. It's also polarised to its mating part, which means that there's only one correct way to connect a device, making it easy to use.

• Gold contact plating for improved corrosion resistance and rust prevention
• Broad operating temperature range of -40°C to +85°C for use in demanding environments
• Low weight of 1.16g means it's easy to handle and won't put a strain on your PCB
• Fully shielded with a tin-plated copper-alloy shell to prevent EMI (electromagnetic interference)

Applications

• IT systems
• Telecommunications

What's the transfer speed of this connector?

This connector is a USB 2.0 device so it has a transfer speed of up to 480Mbps (megabits per second). This means it can rapidly transmit large volumes of data.

Molex USB Connectors

Type A 2.0mm shielded USB PCB receptacle

105057-0001 - Part Details

Product Specification Sheet - 105057-0001
