501334-0000, Molex Pico-Clasp Series Female Crimp Terminal, 32AWG Min, 28AWG Max, Контакты

Molex 1.00mm PicoClasp™ Crimp Receptacles

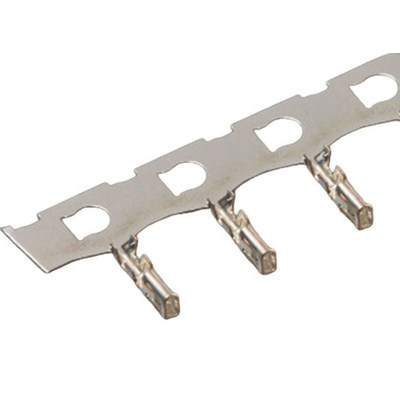

1.00mm PicoClasp™ crimp receptacle terminals for use in series 501330 PicoClasp™ crimp housings. These PicoClasp™ crimp receptacles are tin plated and accept a wire size range of 28-32 AWG

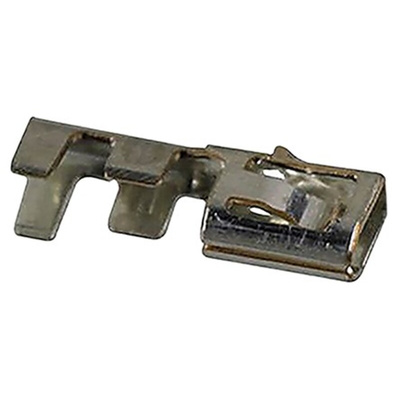

Molex Crimp Terminal, 32 to 28AWG, Tin-Plated Phosphor Bronze Contacts - Pico-Clasp Series - 501334-0000

Get a grip on your conductors with this crimp terminal from Molex. It lets you wire a PCB to your equipment for effective electrical performance. The female casing takes wires between 32 and 28AWG, so it offers a good amount of flexibility. Installation is a piece of cake – just insert your conductor into the body of the terminal and crimp it shut with pliers. This gives you an air-tight joint that stands up to heat and vibration.

Features & Benefits

• Highly conductive tin-plated phosphor bronze contacts for dependable signal transmissions
• Secures wires firmly to prevent accidental disconnection and downtime
• Open ends for easy conductor insertion

Applications

• Electronic devices
• Industrial control systems
• Telecommunications networks
• Medical equipment

What connector housing works with this crimp terminal?

Use it with a Molex Pico-Clasp connector housing (406-691) to get the most out of your connection.

Molex Pico-Clasp™

The new Pico-Clasp™ 1.00mm pitch single and double row wire-to-board connector system from Molex is the smallest connector system on the market today with positive lock. Available on circuit size 6 and above, the positive lock located on the inside of the headers offers reliable high density interconnection in the smallest of applications. The Pico-Clasp single and double row wire-to-board system is available in 2-15 circuit single row and 20, 30 and 40 circuit double row.

Pico-Clasp 1mm crimp terminal, 28-32 AWG

501334-0000 - Drawing

Pico-Clasp Wire to Board Connectors - Brochure

Crimp Specification

Application Specification Sheet - 501334-0000
