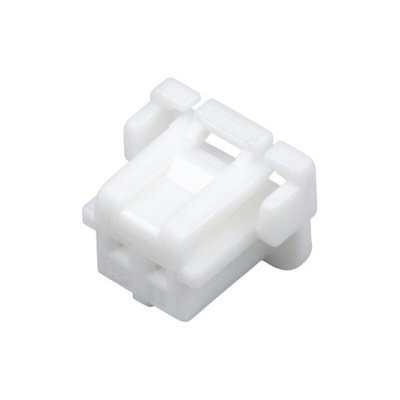

502351-0200, Molex, DuraClik Female Connector Housing, 2mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex 2.0mm DuraClik Standard Wire to Board Receptacle Housings - 502351 Series

2.0mm pitch DuraClik™ Standard receptacle housings ideal for use in high vibration wire to board applications. These 2.0mm receptacle style crimp housings have polarization and keying for accurate mating and also feature an inner positive locking system that provides secure mating retention which is confirmed by an audible 'click'. Typical applications for these 2.0mm DuraClik™ receptacle housings include automotive, industrial, factory automation and lighting.
For mating header connectors see Molex series 560020 and 502352
For crimp termimals see Molex series 560085 and 56161 (stock numbers 910-6936 and 910-6933)

Molex Connector Housing, Female, 3A Current Rating - DuraClik Series - 502351-0200

Features & Benefits

• Compact dimensions of 8 (length) x 6.2 (width) x 6.5mm (depth) for use in setups with limited space
• Pitch of 2.5mm enables reliable spacing between contacts for a safe connection
• Broad operating temperature range of -40°C to +105°C for use in challenging conditions

Applications

• Industrial lighting systems
• Factory automation

How do I link connectors to this housing?

You can link connectors to this housing using a simple hand crimping tool.

2.0mm Wire to Board - Molex DuraClik™ Series

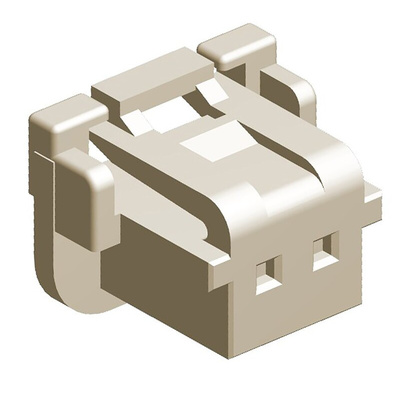

DuraClik 2mm receptacle housing, 2P
