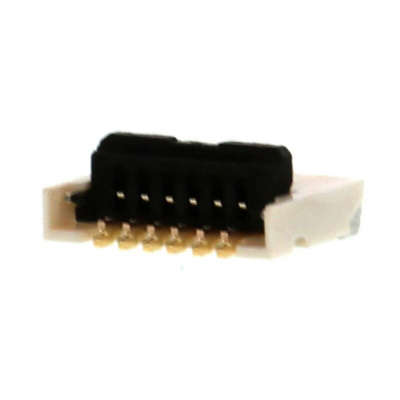

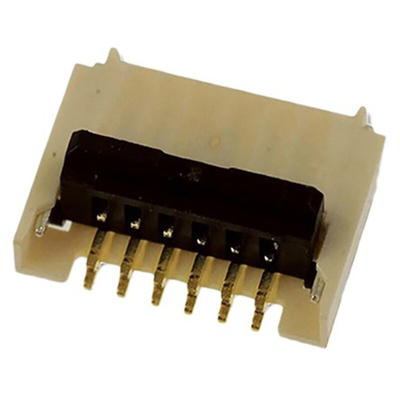

503480-0600, Molex, Easy On, 503480 0.5mm Pitch 6 Way Right Angle Male FPC Connector, Top and Bottom Contact, Разъем

Molex Easy On 0.5 mm Right Angle SMT FPC Connectors with BackFlip Actuator - 503480 Series

Easy On 503480 series right angle SMT mount FPC connectors with a 0.5 mm pitch and a low profile, space saving design. These Easy On FPC connectors feature a BackFlip actuator which provides a secure connection between the FPC and the connector terminals and allow a high upward pull force. The BackFlip actuator also enables easy insertion of the FPC. These FPC connectors have a dual contact design which eliminates the need for separate top and bottom style FPC connectors when routing FPC to parallel boards. This allows design flexibility and makes layout easier and quicker. Solder tabs (or nails) on the base of the connector provide secure PCB retention and strain relief for the solder tail joints and a nickel barrier plating provides protection against flux wicking.

Features and Benefits

• Space saving design with low profile height of 1.00 mm
• BackFlip type actuator for easy and secure connection of FPC
• Dual contact terminal design for cost savings and design flexibility
• Nickel barrier plating to protect against flux wicking
• Solder tabs for secure retention on PCB and strain relief

Product Application Information

These Easy On FPC connectors are ideal for use in digital still cameras, digital video cameras, portable audio players, mobile phones, portable games and personal navigators

Molex FPC Connector, 500mA Current Rating, Gold Over Nickel Contact Plating - Easy On Series - 503480-0600

Assembling electronics is a doddle when you use this Easy-On FPC connector from Molex. Thanks to the right-angled body and backflip actuator, you won't need to do any acrobatics to get internal circuits connected. Top and bottom contacts mean you only need one connector instead of two, so you can simplify your build and save space. A 0.5mm pitch and a low profile height of 1mm keep the component compact enough for mobile devices.

Features & Benefits

• 6 contacts for hooking up multiple circuits
• Gold-over-nickel plating for highly conductive contacts you can rely on
• Accepts flat flexible cables and flexible printed circuits for build versatility
• Thermally-stable liquid-crystal polymer body is temperature-resistant up to +85°C

Applications

• Automotive industry
• Medical technology
• Smart devices
• Computing

Is this FPC connector suitable for automated assembly lines?

Yes. A nickel barrier and wide pick-and-place dimensions mean this FPC connector fits right in with robotic assembly lines.
