22284020, Amphenol Industrial KK 254 Series Vertical Through Hole Pin Header, 2 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Molex KK Vertical Header, 42375 Series

The 42375 Series KK 254 vertical headers are designed to be used in signal wire-to-board and board-to-board applications. They are single row, vertical orientation and designed for through-hole mounting.

Voltage rating: 250 volts
Operating temperature: -40 to 105 C

Standards

UL- E29179, CSA- LR19980

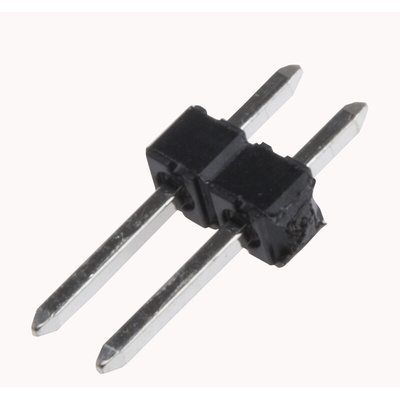

Molex KK 254 Vertical Pin Header, 1 Row, 2 Contacts - 42375 Series - 42375-0002

Establish secure and reliable connections with this pin header from Molex. It's designed for simple installation thanks to its through-hole mounting style, meaning you can push the pin header through your PCB (printed circuit board) without the need for additional tools. You can use it for board-to-board or wire-to-board applications, making it a versatile choice for use in a wide range of industrial, domestic and commercial applications. Thanks to its glass-filled nylon housing material, this unit is highly durable and heat-resistant, making it a good choice for demanding applications.

• Broad operating temperature range of -40°C to +105°C for use in tough industrial environments
• Tin-plated brass contacts provide excellent conductivity and corrosion resistance for high-quality signal transfers

Applications

• Telecommunications applications
• Automotive industry

What does the pitch of a pin header refer to?

The pitch of pin header refers to the distance between the centres of the pins. It's important to know the pitch so you can mate the correct wires and contacts and ensure reliable board-to-board connections. This pin header has a slim 2.54mm pitch to save space on your PCB.

KK 254 2.54mm breakaway PCB header, 2P

Datasheet - 42375-0002

Product Specification Sheet - 42375-0002
