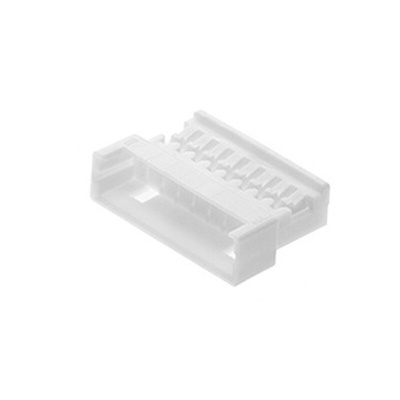

51047-0500, Molex, PicoBlade Male Connector Housing, 1.25mm Pitch, 5 Way, 1 Row, Корпус разъема

Molex PicoBlade™ 1.25mm Wire to Wire Plug Housings, 51047 Series

PicoBlade™ 1.25mm wire to wire plug housing designed for high density harness applications. This 1.25mm wire to wire plug housing is made from polyester and has a mating lock to ensure secure connection to the mating receptacle housing.
Typical applications for these PicoBlade™ plug receptacle connectors include automotive alarm systems, car audio, DVD players, industrial process controllers and patient monitors
Plug contacts for this PicoBlade™ plug housing need to be purchased separately, see series 50125 terminals
For mating connectors see series 51021 wire to wire receptacle housings

Molex Connector Housing, Cable Mounting, 1.25mm Pitch - PicoBlade Series - 51047-0500

Want to keep a connection from working loose? Put it under cover with this Molex connector housing. The unit has a friction lock that holds conductors steady against movement, which cuts out the risk of accidental disconnection. As it stops dust from reaching sensitive elements, this is a smart choice for systems that work in demanding conditions. A 1.25mm pitch makes the housing an easy fit for compact spaces.

Features & Benefits

• Built-in polarising key to avoid damage from misalignment
• Works in temperatures between -40°C and +85°C, making it tough enough for industrial installations
• Sold in a pack of 50 units for convenient stocking
• 9.25 (L) x 3.2mm (W) dimensions take up minimal space in an enclosure

Applications

• Server management
• Power distribution networks
• Manufacturing industry

What's this connector housing made of?

It's made of polyester, which offers reliable resistance against impact and abrasion.

1.25mm Wire to Board - Molex PicoBlade™

PicoBlade 1.25mm crimp plug housing, 5P
