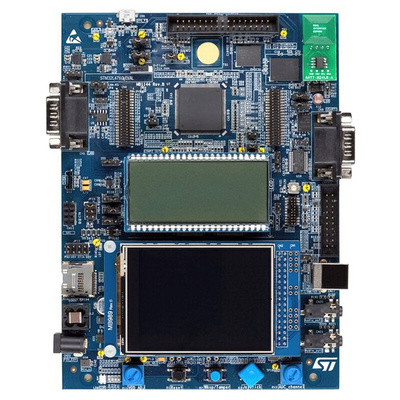

STMicroelectronics MCU Evaluation Board STM32L476G-EVAL

Evaluation Board with STM32L476ZG Microcontroller

The Evaluation Board STM32L476G-EVAL is a complete demonstration and development platform for STMicroelectronics ARM® Cortex®-M4 core-based STM32L476ZGT6 microcontroller. The device features three I²C, three SPI, six USART, CAN, Single Wire Protocol Master Interface (SWPMI), two Serial Audio Interface (SAI), 12-bit ADC, 12-bit DAC, internal 1Mbyte Flash and 128Kbyte SRAM memory, Quad SPI memory, Touch Sensing Controller (TSC), USB OTG Full Scale, LCD controller, Flexible Memory Controller (FMC), and Serial Wire Debug (SWD), JTAG debugging support.
Power Supply options: 5V Power jack, ST-LINK/V2-1, USB connector, User USB OTG FS connector or daughterboard. Microcontroller voltage choice 3.3V or adjustable from 1.71V to 3.6V.

STM32L4 Series 32-Bit ARM® Cortex®-M4 Microcontrollers, STMicroelectronics

The STM32L4 series of ultra-low-power microcontrollers deliver 100DMIPS based on its ARM® Cortex®-M4 core with Floating Point Unit (FPU) and ST ART Accelerator™ at 80MHz.
STM32L4 microcontrollers offer dynamic voltage scaling to balance power consumption with processing demand, low-power peripherals available in Stop mode, safety and security features.

Up to 1MB Flash Memory
LCD 8x40 or 4x44 with step-up converter
USB OTG 2.0 full-speed

STM32L476G-EVAL, Evaluation board with STM32L476ZG Microcontroller

STM32L476xx

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
