WRL-5-L-S-2-RS, Lorlin IP66, IP67 Keylock Switch, Double Pole Single Throw (DPST), 1 A @ 115 V ac 2-Way, -20 → +65°C, Выключатель с ключом

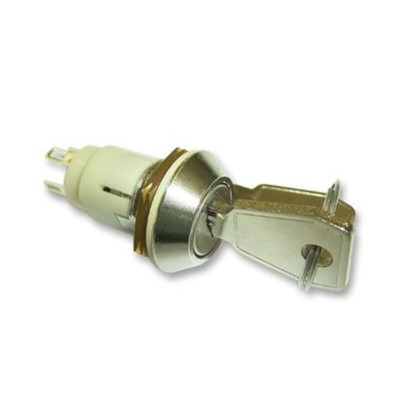

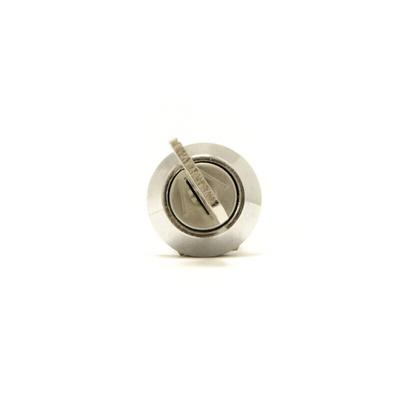

Lorlin Sealed Keylock Switch

The Lorlin Keylock switch has a double pole single throw (DPST) contact configuration. It is high tech, miniature, key-operated lock switch. It is suitable for many possible applications. These double entry keys allow the users to select either key locking or removable from both/ all positions. It is available in 2 or 3 positions and all units are equipped with solder terminals. Each switch is supplied with 2 keys with options for a common key (901) or different key (200 potential differs).
The switch has a contact current rating of 1A and voltage rating of 115VAC.

Features and Benefits

Up to 200 key combinations of keys to differ
Common keys available, keys to pass
Keys are double entry (they can be inserted into the lock either way up)
Occupies small panel area
Easily assembled through front of equipment panel
Rear projection less than 30mm from panel
For continued exterior use lubricate with oil regularly
Latching switch operations
Key trapping
Solder terminal
Nylon 66 case material
Bezel shape is round
Depth behind panel is 22.4mm
Key index angle is 60°
Contact material is brass CZ108
Mechanical life is more than 10,000 cycles
Operating temperature ranges between -20°C and 65°C

Applications

Marine
Control panels

Certifications

IP66 rated
IP67 rated
UL 94V-0
