Siretta OSCAR17/X/TNC/S/S/19 Whip Omnidirectional Antenna with TNC Connector, 2G (GSM/GPRS), 3G (UTMS), Антенна

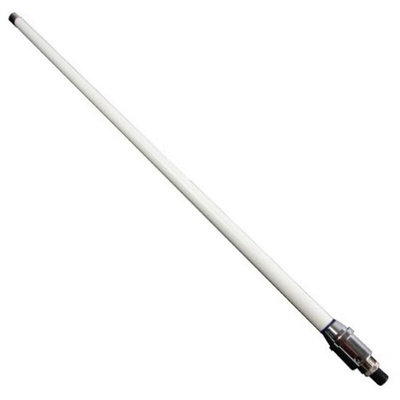

OSCAR 17 Quad Band Omnidirectional Wall/Bracket Mount Antenna, Siretta

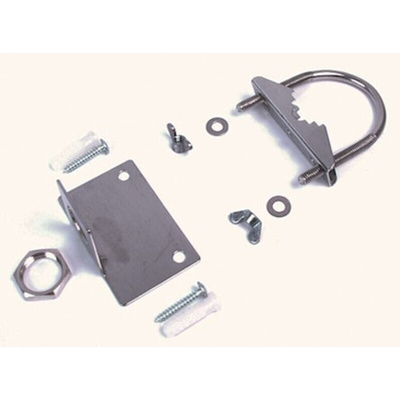

The OSCAR 17 antenna from Siretta can be mounted to a pole or wall using a bracket and U bolt. Intended for outdoor use, you can use the antenna to improve cellular signal strength and reception, with no need to spend time finding the best signal position. Recommended applications include base stations, remote monitoring and alarm & security systems. The OSCAR 17 is also a quad band antenna that covers GSM/GPRS and 3G.

Features & Benefits of the OSCAR 17 Omnidirectional Antenna
•Stainless steel base and fibre glass body
•-40° C to +80° C operating temperature range
•TNC female connector
•50 ohm impedance
•10 dBi gain
•Linear vertical polarization
•Monopole radiating element
•900, 1800, 1900 MHz GSM/GPRS
•2.1 GHz 3G
•Dimensions: 850 x 34 x 34 mm

Note: You will need a RG58 cable with a TNC male connector on one end and another connector at the other end.

Mobile Communication Antenna (GSM/GPRS/2G/3G/4G), Siretta

Oscar 17 Omni Antenna Data Sheet
