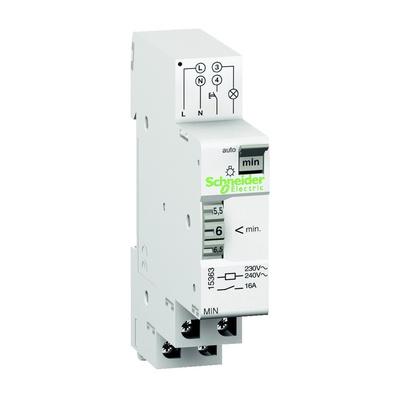

15363, Schneider Electric Staircase Timer Light Switch, 230 V, 1 → 7 min@ 50 Hz, 48 s → 5.6 min @ 60 Hz Setting Time, Переключатель

MIN lighting timers

Modular lighting timers (up to 3600 W for incandescent and halogen lighting); A contact closes and then opens based on a time that can be adjusted from 30 seconds → 20 minutes; Adjustment by potentiometer.

MINs

Automatic operation: lighting timer (any new action restarts the timer).
Override: permanently on.

MINp and MINt

Warning of lighting switching off by light source flashing at the end of the time-delay.
Two automatic operating modes (timer with or without pre-warning), and override.
Two command sequences may be received per pushbutton:
control pulse < 2 seconds. : Starts the adjustable time-delay (during this period, another pulse < 2 seconds. restarts the time-delay (MINp) or switches off the lighting (MINt).
control pulse > 2 seconds. : Starts the fixed time-delay for 1 hour. during this period, another pulse < 2 seconds. restarts the time-delay for 1 hour. and another pulse > 2 seconds. switches off the lighting.

Staircase

15363 Data Sheet
