RS PRO PCB Terminal Block, 2-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw Termination

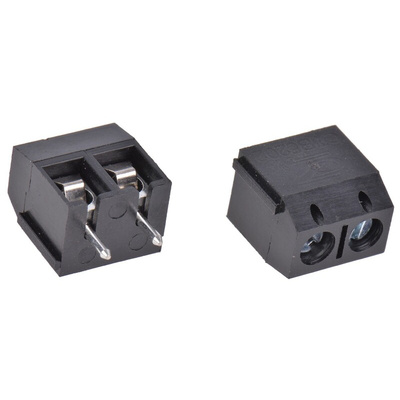

RS PRO 5 mm Pitch, 2 Way PCB Terminal Block

This 2-way PCB (printed circuit board) terminal block from RS PRO features a low profile design, making it the ideal choice for space-saving applications. It comes with steel wire protectors that help prevent corrosion, so it's particularly useful in semi-industrial settings, such as building automation and telecommunication systems.
Screw-type terminals on this PCB block make it easy to create reliable connections using just a screwdriver. The unit has through-hole mounting, so it can withstand some environmental stress due to vibrations. The rising clamp design offers a high contact force, for strong connections even in harsh settings.
The housing of this unit is made from polyamide, which is highly durable. Additionally, it's rated UL 94 V-0 for fire safety by Underwriters Laboratory (UL). This means it won't burn for longer than 50 seconds in case of fire.

Features and Benefits

• Straight body orientation
• Black colour
• Current rating of 16 A
• Depth of 10.2 mm
• Male gender
• Length of 10 mm
• Polyamide material
• Through-hole mounting type
• Two contacts
• One row
• Pitch of 5 mm
• Screw termination method
• PCB terminal block type
• Voltage rating of 250 V
• Width of 7.6 mm

RS Pro Datasheet
