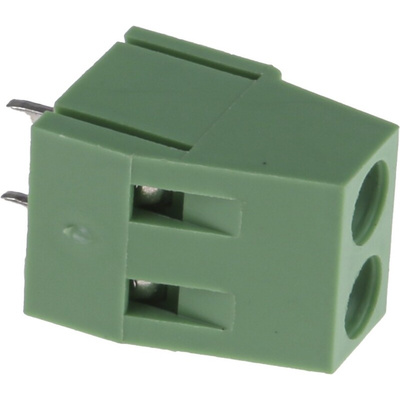

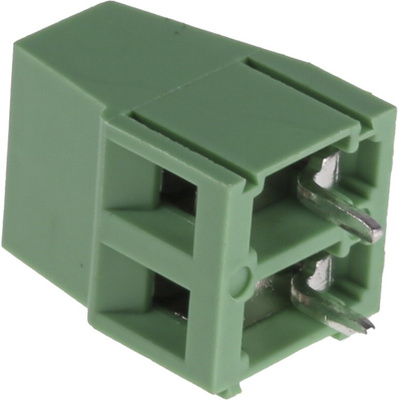

RS PRO PCB Terminal Block, 2-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 2-pin PCB Terminal Block, 5 mm Pitch

Turn to this PCB (printed circuit board) terminal block from RS PRO for reliable signal, data and power connections in telecom and IT systems. It's interlocking, so you can connect multiple units to create larger blocks by sliding them onto each other. This makes it particularly suited for building modular devices with ease.
This PCB uses professional rising clamp terminals that achieve a sturdy connection with high contact force. This technology prevents damage due to rust and corrosion and also improves mechanical strength for withstanding stress due to vibrations. A wide operating temperature range of -33°C to +120°C means it's a versatile choice for tough industrial settings.
This unit is stringently tested for quality and reliability. The housing is made from UL-94-V-0 (Underwriters Laboratory) rated polyamide, so it doesn't drip and cause secondary damage to your devices in case of a fire.

Features and Benefits

• Straight body orientation
• Green colour
• Current rating of 10 A
• Dimensions of 14.35 (depth) x 10 (length) x 10.3 (width) mm
• Male gender
• Polyamide material
• Through-hole mounting type
• Two contacts
• One row
• Pitch of 5 mm
• Screw termination method
• PCB terminal block type
• Voltage rating of 300 V
