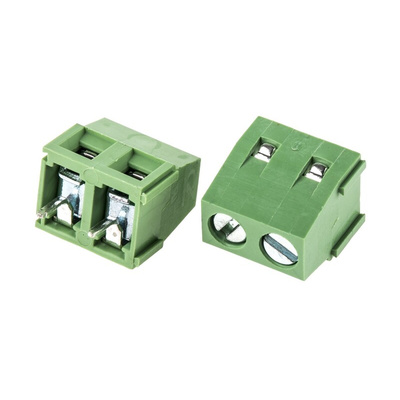

RS PRO PCB Terminal Block, 2-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 2-pin PCB Terminal Block, 5 mm Pitch

Turn to this PCB (printed circuit board) terminal block from RS PRO for terminating or ground wires in your modular electronics devices. The unit features a double-interlocking mechanism that lets you safely connect two or more together to build larger units. This makes it ideal for use in semi-automation systems.
The PCB terminal block accepts wires of sizes of 22 to 12 AWG (American Wire Gauge), so it's a versatile choice for industrial telecom solutions. Its housing is made from strong polyamide so you can be confident of its strength and durability. A height of just 10 mm makes it easy to fit into hard-to-reach areas or in applications where space-saving is crucial.
This unit is moulded in a UL-94-V-0 (Underwriters Laboratory) rated material for fire safety. This means it stops burning within 50 seconds in case of accidental fire.

Features and Benefits

• Straight body orientation
• Green colour
• Current rating of 10 A
• Dimensions of 10 (depth) x 10 (length) x 8.1 (width) mm
• Male gender
• Polyamide material
• Through-hole mounting type
• Two contacts
• One row
• Pitch of 5 mm
• Screw termination method
• PCB terminal block type
• Voltage rating of 300 V

RS Pro Datasheet
