RS PRO PCB Terminal Block, 4-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw Termination

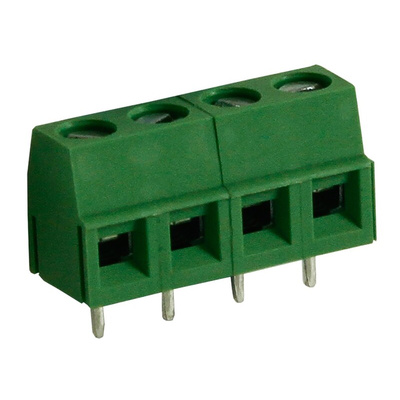

RS PRO 4-pin PCB Terminal Block, 5 mm Pitch

For terminating or grounding cables in your modular electronics devices, use this RS PRO PCB (printed circuit board) terminal block. It's a good choice for semi-automated systems as the unit has a double-interlocking mechanism that allows you to securely link two or more to make larger units.


The terminal block supports wires with diameters ranging from 22 to 12 AWG (American Wire Gauge), making it a versatile option for industrial telecom applications. It has a high-strength polyamide housing to ensure its strength and reliability. Its 10 mm height means it will save space and fit easily into tight spaces.


For safety in the event of a fire, this unit is manufactured using UL-94-V-0 (Underwriters' Laboratories) rated material. This mean it will stop burning within 50 seconds.

Features and Benefits

• Straight body orientation


• Green colour


• Current rating of 10 A


• Dimensions of 20 (length) x 8.1 (width) x 10 mm (depth)


• Male gender


• Polyamide material


• Through-hole mounting type


• Four contacts


• One row


• Pitch of 5 mm


• Screw termination method


• PCB terminal block type


• Voltage rating of 300 V

RS Pro Datasheet
