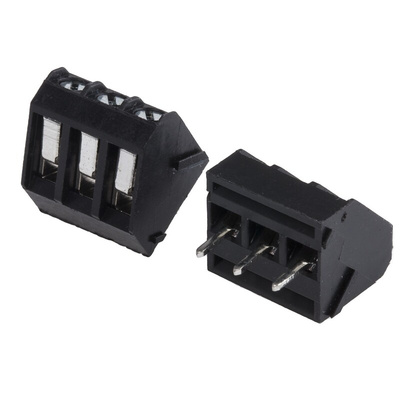

RS PRO PCB Terminal Block, 3-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 3-pin PCB Terminal Block, 5 mm Pitch

Need a low profile PCB (printed circuit board) terminal block for compact systems? This RS PRO unit features a 45° angled design and a pitch of just 5 mm, so it's easy to fit into modular semi-automation and telecommunication systems with space constraints.
The PCB terminal block features professional rising clamps for termination, which ensures that the wire is clamped securely using a high contact force. Through-hole mounting helps improve the mechanical strength of the unit, so it can be used even in tough settings where vibrations can cause stress.
This product has a wide operating temperature range of -33°C to +120°C, so it can be mounted onto flexible PCBs that are typically used in medical devices and household electronic gadgets. As part of the RS PRO range, this unit is tested for quality and reliability.

Features and Benefits

• Straight body orientation
• Black colour
• Current rating of 15 A
• Dimensions of 12.3 (depth) x 15 (length) x 12.6 (width) mm
• Male gender
• Polyamide material
• Through-hole mounting type
• Three contacts
• One row
• Pitch of 5 mm
• Screw termination method
• PCB terminal block type
• Voltage rating of 300 V
