RS PRO PCB Terminal Block, 3-Contact, 7.5mm Pitch, Through Hole Mount, 1-Row, Screw Termination

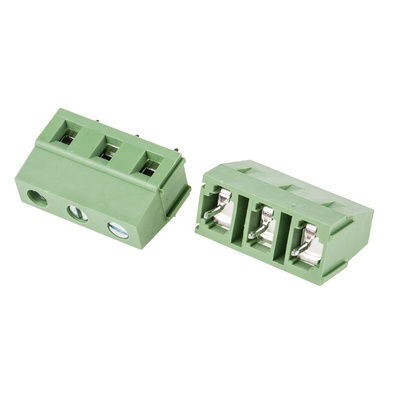

RS PRO 3 Way PCB Terminal Block, 7.5 mm Pitch

This three-way PCB (printed circuit board) terminal block can be used to link wires across separate PCBs quickly and effectively. It's designed for direct through-hole mounting on your PCB and has a double interlocking mechanism that gives it increased strength to ensure reliable performance.
This block's contacts are built for a screw termination method, allowing connections to be secured easily by the tightening of a screw. A wide operating temperature range between -40°C and +105°C means that this PCB terminal is a highly versatile component, suitable for a variety of demanding environments.
The green polyamide (PA) material used for the housing of this block is certified UL (Underwriters Laboratories) 94-V0, which indicates a good level of flame resistance. The PCB terminal block is suitable for setting up circuitry in anything from everyday electronics devices to industrial equipment.

Features and Benefits

• Straight body orientation
• Green colour
• Current rating of 10 A
• Voltage rating of 300 V
• Depth of 14.3 mm
• Length of 22.5 mm
• Width of 10.3 mm
• Pitch of 7.5 mm
• Through-hole mounting type
• Three contacts
• Single row
• Screw termination method
