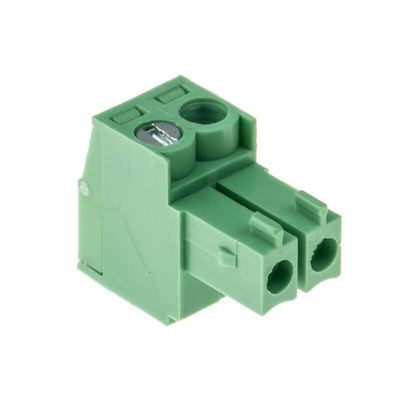

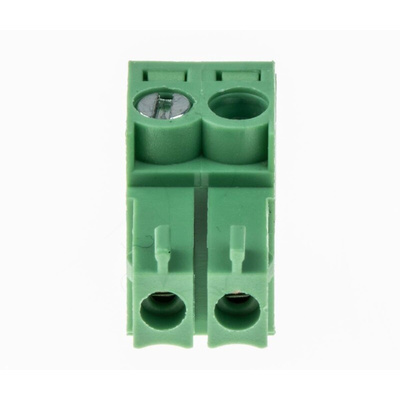

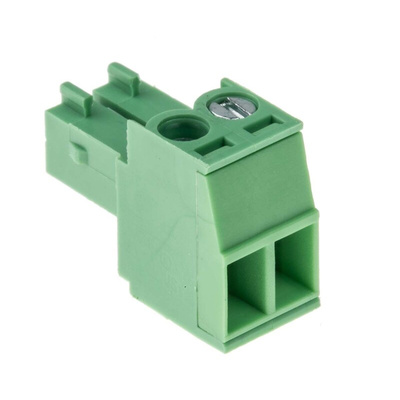

RS PRO 3.5mm Pitch 2 Way Right Angle Pluggable Terminal Block, Plug, Through Hole, Screw Termination

RS PRO 3.5mm Pitch, 2-Way PCB Terminal Block

Safely and efficiently connect wires across printed circuit boards with this 2-way PCB (printed circuit board) terminal strip. You can mount this insulated, modular device directly onto the board.

If there are any issues or adjustments needed, the PCB terminal block is pluggable for easy connections that can be quickly disconnected. It's easy to set up thanks to its through-hole mounting, while the screw termination method allows for easy securing of connections. Its steel screws as well as its four contacts are tin-plated to reduce corrosion, oxidation and degradation. Accepting solid and strained cable with a wire size range of 0.13 mm² to 1.3 mm², this is a highly versatile connector.

This component has been tested in order to meet our exacting RS PRO standards. Its housing is made of green polyamide (PA66) with a UL94-V0 certification, indicating good fire safety. It can be used in anything from small-scale electronics equipment you'd find at home to complex industrial circuitry.

Features and Benefits

• Green 2-way PCB Terminal Block
• Pitch of 3.5 mm
• Dimensions of 7 mm (length) x 15.6 mm (depth) x 11.4 mm (width)
• Single row
• Through-hole mounting
• Female connection (socket)
• Screw termination method
• Right-angle body orientation
• Current rating of 10 A
• Voltage rating of 200 V
• Made of Polyamide

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
