RS PRO 3.5mm Pitch 4 Way Right Angle Pluggable Terminal Block, Plug, Through Hole, Screw Termination

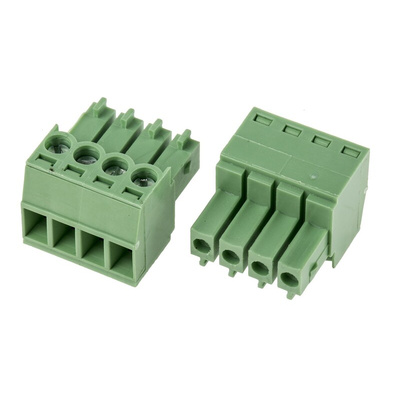

RS PRO 3.5 mm Pitch, 4-Way PCB Terminal Block

Looking for a safe and easy way to set up circuits on your PCB (printed circuit board)? This time-saving 4-way PCB terminal block can be used to connect two or more wires, and you can mount it directly on the board.

The block is pluggable for easy connections that can be quickly disconnected if there are any issues or adjustments needed. Through-hole mounting makes it straightforward to set up. The screw termination method allows connections to be secured simply. The PCB terminal block's steel screws are tin-plated to reduce corrosion, oxidation and degradation, as are the four contacts. This connector is highly versatile, accepting solid and strained cable with a wire size range of 0.13 mm² to 1.3 mm².

The housing of this PCB terminal block is made of green polyamide (PA66), which has a UL94-V0 certification, indicating good fire safety. The component has also been tested in order to meet our exacting RS PRO standards. It can be used effectively in anything from everyday electronics equipment to industrial circuitry.

Features and Benefits

• Green 4-way PCB Terminal Block
• Pitch of 3.5 mm
• Dimensions of 14 mm (length) x 15.6 mm (depth) x 11.4 mm (width)
• Single row
• Through-hole mounting
• Female connection (socket)
• Screw termination method
• Right-angle body orientation
• Current rating of 10 A
• Voltage rating of 200 V
• Made of Polyamide
