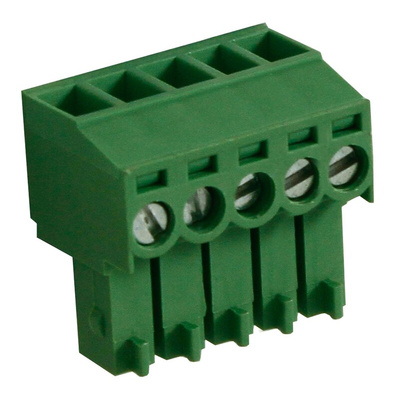

RS PRO 3.5mm Pitch 5 Way Right Angle Pluggable Terminal Block, Plug, Through Hole, Screw Termination

RS PRO 5 Way PCB Terminal Block, 3.5 mm Pitch

If you need a safe and easy way to set up circuits on your PCB (printed circuit board), this five-way PCB terminal block can be used to connect two or more wires. It can be installed directly on the board with simple through-hole mounting.
The block is designed for screw termination, which allows connections to be secured firmly using a screwdriver. Its screws are tin-plated to reduce corrosion, oxidation and degradation, as are the four contacts. This connector is highly versatile, accepting wires within a size range of 0.33 mm² to 3.3 mm².
The housing of this product is made of green polyamide (PA66), which has good flame retardance, enabling a safer working environment. It can be used effectively in anything from everyday electronics equipment to industrial circuitry.

Features and Benefits

• Right angle body orientation
• Current rating of 10 A
• Voltage rating of 200 V
• Depth of 15.6 mm
• Length of 17.5 mm
• Width of 11.4 mm
• Pitch of 3.5 mm
• Through-hole mounting type
• Five contacts
• One row
• Screw termination method
