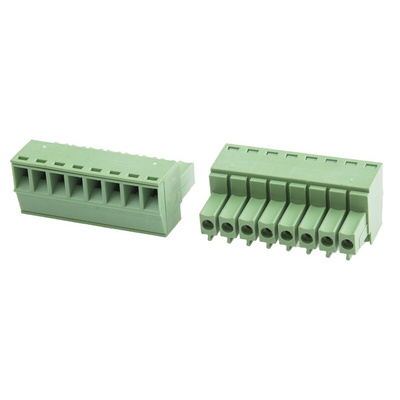

RS PRO 3.5mm Pitch 8 Way Right Angle Pluggable Terminal Block, Plug, Through Hole, Screw Termination, Клеммная колодка

8971014
Производитель: RS PRO
Цена за шт. (норма упаковки 5 шт)
910.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO 8-pin PCB Terminal Block, 3.5 mm Pitch

This eight-way PCB terminal block from RS PRO can be used to connect two or more wires when setting up circuits on your PCB (printed circuit board). For ease of installation, you can install it directly on the board using through-hole mounting.


The connector is highly versatile as it can accommodate wires with diameters ranging from 0.33 mm² to 3.3 mm². It's designed for screw termination, so you can easily secure your connections using a screwdriver. The tin-plated screws and contacts are resistant to corrosion and oxidation to ensure a long service life.


This product's housing is made of green polyamide (PA66), which is flame-retardant for a safer working environment. You'll find it used in wide range of applications, from consumer electronics to industrial circuitry.

Features and Benefits


  • Right angle body orientation

  • Current rating of 10 A

  • Voltage rating of 200 V

  • Depth of 15.6 mm

  • Length of 28 mm

  • Width of 11.4 mm

  • Pitch of 3.5 mm

  • Through-hole mounting type

  • Eight contacts

  • One row

  • Screw termination method

Техническая спецификация
pdfRS PRO Datasheet
