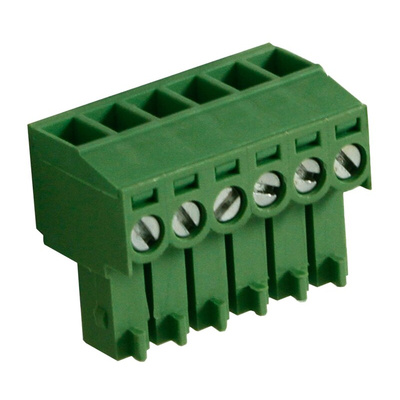

RS PRO 3.5mm Pitch 6 Way Right Angle Pluggable Terminal Block, Plug, Through Hole, Screw Termination

RS PRO 6 Way PCB Terminal Block, 3.5 mm Pitch

This six-way PCB terminal block from RS PRO lets you connect two or more wires for a safe and simple way to set up circuits on your PCB (printed circuit board). Thanks to its easy through-hole installation, it can be mounted directly on the board.


The block comes ready for screw termination, allowing you to firmly secure connections with a screwdriver. The screws and the six contacts are tin-plated to prevent corrosion, oxidation and degradation for long-lasting performance in harsh environments. This connector is also a versatile choice, as it accommodates wires with diameters ranging from 0.33 mm² to 3.3 mm².


This product's housing is made of green polyamide (PA66), which is flame-retardant and allows for a safer working environment. You'll find this product used in a wide range of applications, from consumer electronics to industrial circuits.

Features and Benefits

• Right angle body orientation


• Green colour


• Female gender


• Polyamide material


• Current rating of 10 A


• Voltage rating of 200 V


• Depth of 15.6 mm


• Length of 21 mm


• Width of 11.4 mm


• Pitch of 3.5 mm


• Through-hole mounting type


• Six contacts


• One row


• Screw termination method
