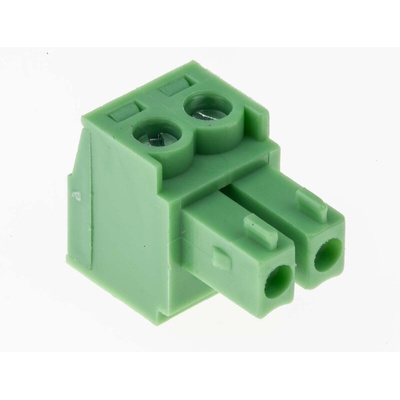

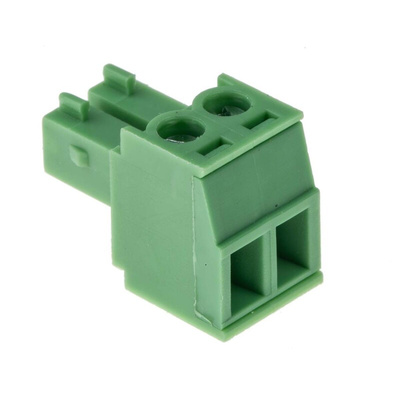

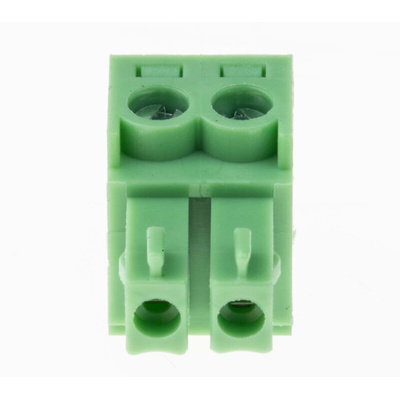

RS PRO 3.81mm Pitch 2 Way Right Angle Pluggable Terminal Block, Plug, Through Hole, Screw Termination

RS PRO 3.81 mm Pitch, 2-way PCB Terminal Block

You can safely and efficiently connect wires across printed circuit boards with the help of this 2-way PCB terminal strip. For added convenience, this insulated, modular device can be mounted directly onto the board.

The strip's handy screw termination method makes securing connections as easy as the simple tightening of a screw. Should any issues arise, it's also pluggable for quick removal of connections. Thanks to the through-hole mounting method, it's a straightforward component to set up. Accepting solid and strained cable with a wire size in the range of 0.13 mm² to 1.3 mm², this is a highly versatile connector.

The PCB terminal block's housing is made of green polyamide (PA66) with a UL94-V0 certification – an indication of good fire safety. It's also been tested to meet our stringent RS PRO standards. You can use it in anything from small electronics devices to large-scale industrial circuitry.

Features and Benefits

• 2 contacts
• Pitch of 3.81 mm
• Single row
• Through-hole mounting
• Female
• Screw termination method
• Right angle body orientation
• Voltage rating of 125 V
• Current rating of 8 A
• Made of Polyamide (green)
• Dimensions of 8.41 mm (Length) x 11.2 mm (W) x 15.5 mm (Depth)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
