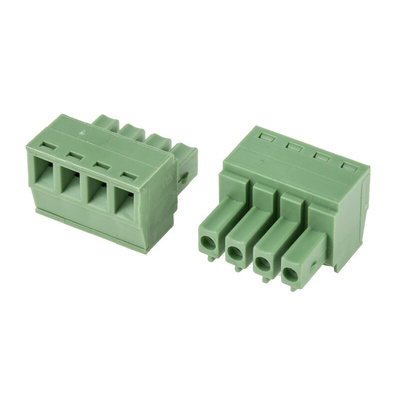

RS PRO 3.81mm Pitch 4 Way Right Angle Pluggable Terminal Block, Plug, Through Hole, Screw Termination

RS PRO 3.81 mm Pitch, 4-way PCB Terminal Block

Safely and efficiently connect two or more wires with this 4-way PCB terminal block. Simply fit the unit directly onto your PCB (printed circuit board).

Securing connections on this strip is as easy as the tightening of a screw thanks to its handy screw termination method. If you experience any issues, it's also conveniently pluggable, allowing for quick removal of connections if needed. Thanks to its through-hole mounting method, it's quick and straightforward to set up. This is a highly versatile connector, accepting solid and strained cable with a wire size range of 0.13 mm² to 1.3 mm².

The component has been tested in order to meet the highest RS PRO standards. An indication of good fire safety, its housing is composed of green polyamide (PA66) with a UL94-V0 certification. You'll find it in a wide range of applications, from electronics equipment to industrial circuitry.

Features and Benefits

• Four contacts
• Pitch of 3.81 mm
• Single row
• Through-hole mounting
• Female
• Screw termination method
• Straight body orientation
• Voltage rating of 125 V
• Current rating of 8 A
• Made of polyamide (green)
• Dimensions of 16.03 mm (Length) x 11.2 mm (W) x 15.5 mm (D)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
