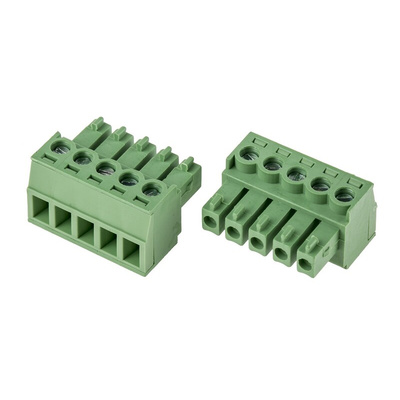

RS PRO 3.81mm Pitch 5 Way Right Angle Pluggable Terminal Block, Plug, Through Hole, Screw Termination

RS PRO 5-Way PCB Terminal Block, 3.81 mm Pitch

Connect two or more wires together with this five-way terminal block from RS PRO. It can be easily mounted on a PCB (printed circuit board) and has a through-hole mounting design for simple installation.
The block is made from polyamide (PA66), which is resistant to impact and wear, as well as having a high level of flame retardance – a UL (Underwriters Laboratories) 94-V0 rating indicates that it will burn for no more than 30 seconds when exposed to a naked flame. A broad operating temperature range of -33°C to +120°C also makes it safe to use in a variety of demanding environments.
This terminal's contacts are easy to connect via screw termination, and its screws are made from a tin-plated steel material, offering a high level of durability and rust-proofing for reliable performance over a long lifespan. You can use it for electronics applications and industrial machinery.

Features and Benefits

• Right angle body orientation
• Green colour
• Polyamide material
• Through-hole mounting type
• Five contacts
• Single row
• Screw termination method
• Current rating of 8 A
• Voltage rating of 125 V
• Depth of 15.5 mm
• Width of 11.2 mm
• Length of 19.84 mm
• Pitch of 3.81 mm

RS PRO Datasheet
