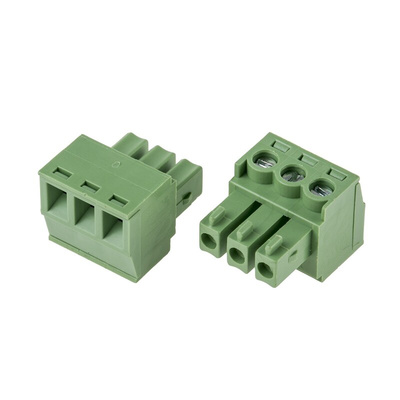

RS PRO 3.81mm Pitch 3 Way Pluggable Terminal Block, Plug, Through Hole, Screw Termination

RS PRO 3.81 mm Pitch, 3-way PCB Terminal Block

An efficient and straightforward way to connect two or more wires, this 3-way PCB (printed circuit board) terminal block can be mounted directly on a PCB. It's used in conjunction with PCB header blocks.

The screw termination method of the strip allows the connections to be secured simply and reliably, with the tightening of a screw. It's also pluggable for easy connections that can be quickly removed if there are any issues. The through-hole mounting method makes it straightforward to set up. This PCB terminal block is highly versatile, accepting solid and strained cable with a wire size range of 0.13 mm² to 1.3 mm².

The green polyamide (PA66) material that's used for the terminal block's housing has a UL94-V0 certification, which indicates good flame resistance. This PCB terminal block is suitable for use in anything from everyday electronics equipment to industrial circuitry.

Features and Benefits

• 3 contacts
• Pitch of 3.81 mm
• Single row
• Through Hole mounting
• Female
• Screw termination method
• Straight body orientation
• Voltage rating of 125 V
• Current rating of 8 A
• Made of Polyamide (green)
• Dimensions of 12.22 mm (Length) x 11.2 mm (Width) x 15.5 mm (Depth)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
