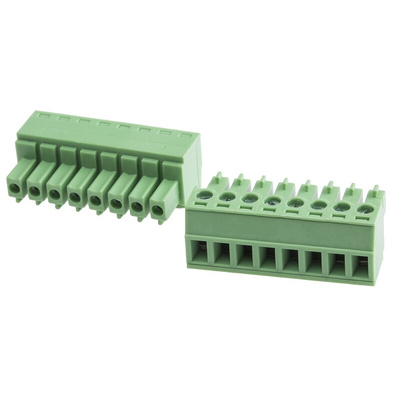

RS PRO 3.81mm Pitch 8 Way Right Angle Pluggable Terminal Block, Plug, Through Hole, Screw Termination

RS PRO 3.81 mm Pitch, 8-way PCB Terminal Block

An efficient and straightforward way to connect two or more wires, this 8-way printed circuit board (PCB) terminal block is used in conjunction with PCB header blocks. It can be mounted directly onto a PCB and is versatile and installation is straightforward.

For easy connection and quick removal should any issues arise, this terminal block is pluggable. Its screw termination method means that connections can be secured in a simple and reliable fashion, with the swift tightening of a screw. Thanks to its through-hole mounting method, it's also very straightforward to set up. Finally, it accepts strained and solid cable and a wire size range of 0.13 mm² to 1.3 mm².

An indication of high resistance to flames, the green polyamide (PA66) material that its housing is made from boasts a UL94-V0 certification. This versatile component is found across electronic systems – from domestic devices to industrial applications.

Features and Benefits

• 8 contacts
• Pitch of 3.81 mm
• Single row
• Through-hole mounting
• Female
• Screw termination method
• Right angle body orientation
• Voltage rating of 125 V
• Current rating of 8 A
• Made of polyamide (green)
• Dimensions of 31.27 mm (L) x 11.2 mm (W) 15.5 mm (D)
