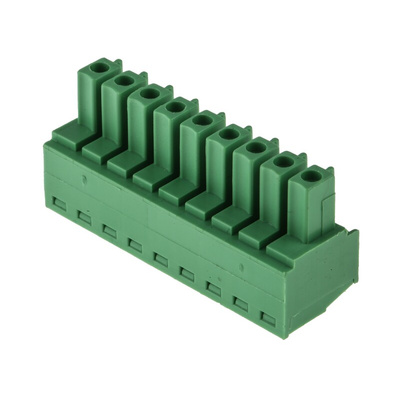

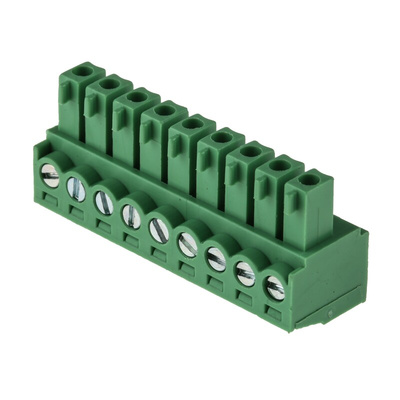

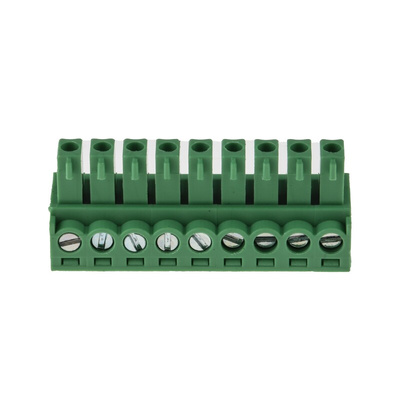

RS PRO 3.81mm Pitch 9 Way Right Angle Pluggable Terminal Block, Plug, Through Hole, Screw Termination

RS PRO 9-Way PCB Terminal Block, 3.81 mm Pitch

Use this nine-way terminal block from RS PRO to connect two or more wires together. It has a through-hole mounting design for easy installation and can be mounted directly on a PCB (printed circuit board).


Thanks to the block's polyamide (PA66) material, it's impact and wear-resistant as well as flame-retardant. It has a UL (Underwriters' Laboratories) 94-V0 rating, meaning that it will burn for no more than 30 seconds when exposed to a naked flame. It's also safe to use in a variety of challenging environments thanks to its wide operating temperature range of -33°C to +120°C.


The contacts on this terminal are easily connected via screw termination. For durability and long-term performance, the screws are constructed of a rust-proof tin-plated steel material. This type of block is commonly used in electronics as well as industrial machines.

Features and Benefits

• Right angle body orientation


• Green colour


• Polyamide material


• Through-hole mounting type


• Nine contacts


• Single row


• Screw termination method


• Current rating of 8 A


• Voltage rating of 125 V


• Depth of 15.5 mm


• Width of 11.2 mm


• Length of 35.08mm


• Pitch of 3.81 mm
