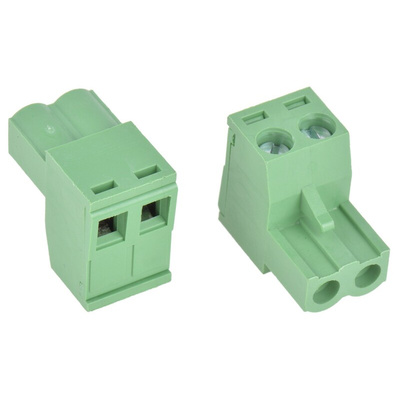

RS PRO 5mm Pitch 2 Way Right Angle Pluggable Terminal Block, Plug, Through Hole, Screw Termination

RS PRO 2-pin PCB Terminal Block, 5 mm Pitch

Choose this terminal block from RS PRO to secure wires together on your printed circuit board (PCB). It's commonly used for grounding, which ensures the noise-free operation of your electronic devices.
This PCB block features two pins, so it's compact and easy to build modular systems with multiple configurations. The mouldings are polarised to make it easier to mate wires correctly. This allows for faster quality checks during industrial manufacturing. Additionally, the unit is pluggable so installation is quick and simple.
The unit features rising clamps that ensure tight solder-free connections with high contact forces for reliable transmission of signals. The feature also ensures increased resistance to rust and corrosion. The terminal block is made from UL94-V0 flame-retardant polyamide which doesn't drip easily in case of fire, so it prevents severe secondary damage to your electronics.

Features and Benefits

• Right angle body orientation
• Green colour
• Current rating of 15 A
• Dimensions of 15 (depth) x 10 (length) x 18.2 (width) mm
• Female gender
• Polyamide material
• Through-hole mounting type
• Two contacts
• One row
• Pitch of 5 mm
• Screw termination method
• Plug type
• Voltage rating of 300 V

RS Pro Datasheet
