RS PRO PCB Terminal Block, 4-Contact, 3.5mm Pitch, Through Hole Mount, 1-Row, Screw Termination

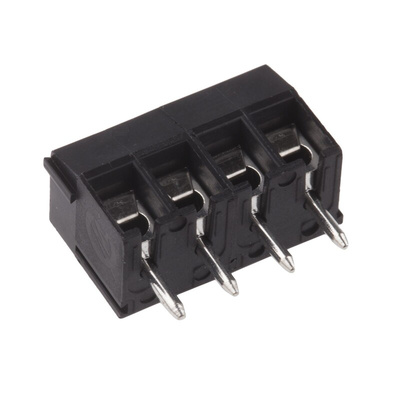

RS PRO 4-pin PCB Terminal Block, 3.5 mm Pitch

Looking for a PCB (printed circuit board) terminal block for compact applications? This 4-pin unit from RS PRO features an ultra-low profile design with a pitch of 3.5 mm and a height of just 8 mm, making it an ideal choice for use in small electronic devices.
This PCB block features screw terminals with double interlocking that create a secure connection. It also has stainless steel wire guards that protect the connections in permanent applications. While mounting the unit to your PCB, the terminal's anti-solder wicking property ensures the solder does not flow away from the pad. This prevents dirt from accumulating in the holes of the board.
The unit features tinned, nickel-plated brass contacts that ensure reliable data transmission while offering superior corrosion resistance. It's RoHS (Restriction of Hazardous Substances) compliant, so it uses only trace amounts of any contaminants.

Features and Benefits

• Straight body orientation
• Black colour
• Current rating of 6 A
• Dimensions of 8.5 (depth) x 10.5 (length) x 7 (width) mm
• Male gender
• Polyamide material
• Through-hole mounting type
• Four contacts
• One row
• Pitch of 3.5 mm
• Screw termination method
• PCB terminal block type
• Voltage rating of 300 V
