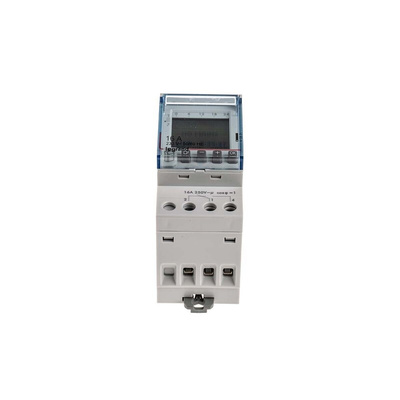

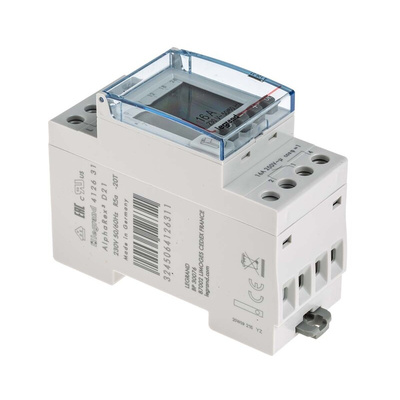

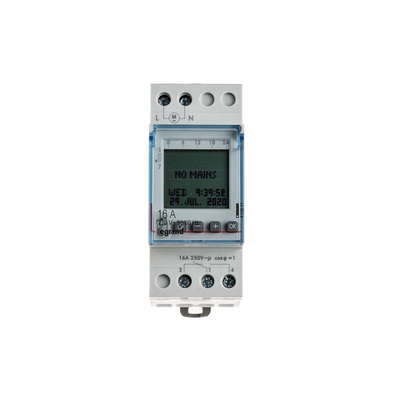

4 126 31, Legrand Digital DIN Rail Time Switch 230 V ac, 2-Channel

Legrand AlphaRex Programmable Time Switch

Legrand AlphaRex programmable weekly time switches are used for switching an electric circuit (lighting, heating) On or Off at selected times during a pre-programmed time period.

Backlit graphic display
24 h/7 day programme time
DIN Rail mounting
Text based programming- programmable in 15 languages
EEPROM memory keeps programmes stored indefinitely
Zero-crossing switching
230 V supply voltage
Automatic summer/winter time correction
5 Years running reserve
IP20 protection

Single channel (897-6753)
Two channel (897-6750)

Legrand Time Switch

The Kubler HK 47.20 series micro hour counter is a 7-digit panel mount meter with a wire lead connection and has an integrated spring clip. It has a supply voltage rating ranging between 4.5VDC and 35VDC. This device is pulse-driven, precision crystal controller via an electronic divider circuit. This non-resettable counter is robust and extremely tamper-proof.

Features and Benefits

• DIN rail mounting
• Backlit graphic display
• Number of programs is 56
• Contact current is 16A
• 24-hourss/7-day programme time
• Minimum programme setting is 1 second
• text-based programming in 15 languages
• EEPROM memory keeps programmes stored indefinitely
• Zero-crossing switching
• Automatic summer/winter time correction

Applications

• Ideal for outdoor and street lighting
• Control of lighting, heating and ventilation

Certifications

• IP20 rated

Datasheet
