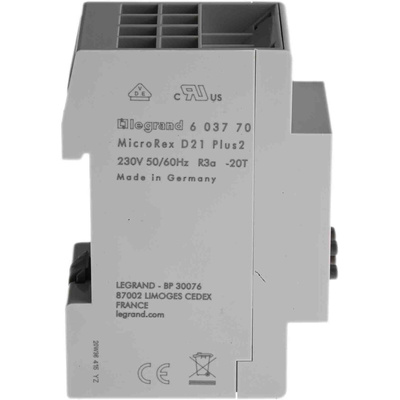

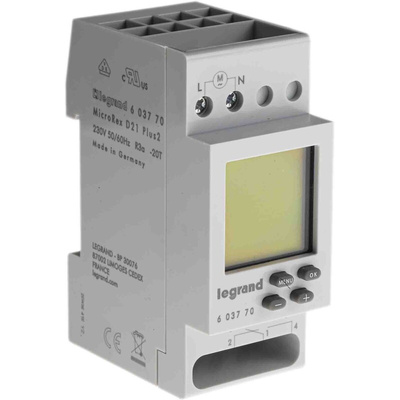

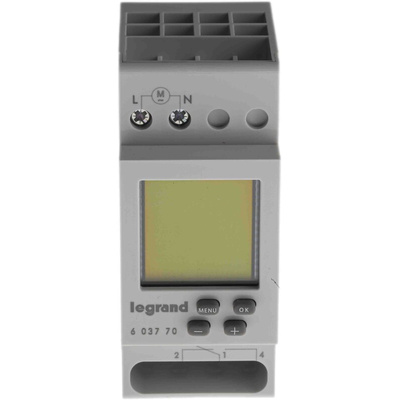

6 037 70, Legrand 1 Channel Digital DIN Rail Time Switch Measures Hours, Minutes, Seconds, 230 V ac

Legrand MicroRex Plus Time Switch

Legrand MicroRex Plus programmable time switches with digital display.

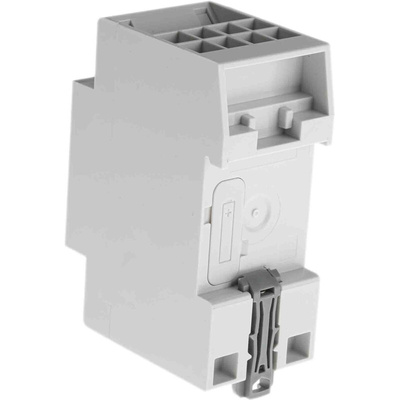

DIN Rail mounting
1 program consists of 1 ON and 1 OFF time
Manual override (ON/OFF): permanent ON or OFF
Running reserve of 3 years
Exchangeable battery
IP20 protection

1 channel (897-6918)
2 channel (897-6927)

Legrand Time Switch

The Lascar digital hour counter is a 5-digit, panel mount device with an LCD for recording elapsed time. It has a supply voltage rating ranging between 5VDC and 27VDC with 1.5mA current rating. The module features 9999.9 and 99999 hour ranging, resulting in 1/10 hour and 1-hour resolution respectively. It features leading zero blankings, trip/total indication and hourly pulse output. This counter displays in hours (HHHHHH:HH). The meter can be panel mounted by drilling a 5.5mm (0.22in) hole. The connection to the meter is established through a set of wires.

Features and Benefits

• GB version switch
• Number of programs is 28
• 1 program consists of 1 ON and 1 OFF time
• Manual override (ON/OFF): permanent ON or OFF
• Automatic override (ON/OFF): actual program will be inversed (ON->OFF, OFF->ON) till next programmed ON time
• Exchangeable battery
• Running reserve of 3 years
• Operating temperature ranging between -10°C and 55°C

Applications

• Ideal for outdoor and street lighting
• Control of lighting, heating and ventilation

Certifications

• IP20 rated
• EN 60730-1
• EN 60730-2-7
• CE certified

Datasheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
