1962840000, Weidmuller Cat6a 1 Way RJ45 RJ45 Insert,With 360° Shielded Shield Type

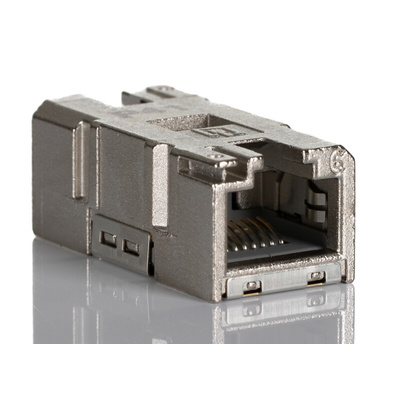

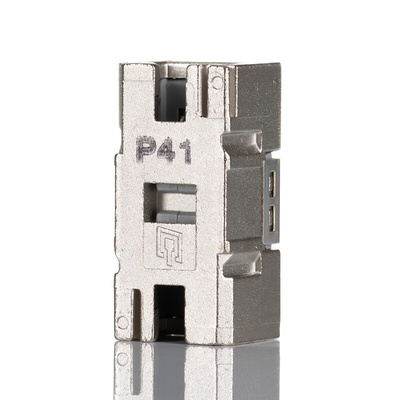

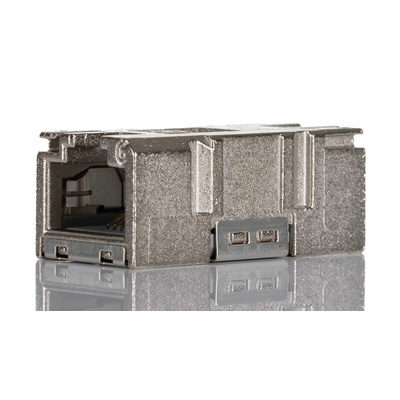

Weidmuller Modular Socket, Straight Entry Angle, 750 Plugging Cycles - 1962840000

Get your network up and running in a snap with this modular socket from Weidmuller. It lets you connect an RJ45 cable to a device such as a computer, router or switch. The compact dimensions of 32.51 (L) x 15.6 (W) x 13.19mm (D) mean it provides a space-saving solution for cramped setups. Thanks to its data transmission rate of 10Gbps, you can transfer data quickly to boost productivity. A gold-over-nickel contact surface ensures good conductivity and resistance to corrosion, so you get an electrical connection you can count on.

• 360° all-round enclosure shielding reduces interference for improved signal quality
• Wide operating temperature range between -40°C and +70°C for use in demanding environments

Applications

• Robotics systems
• Audio and visual equipment
• Medical facilities
• Office server rooms

How tough is this modular socket?

Its robust die-cast zinc housing offers protection from corrosion and impact, ensuring long-term performance in harsh environments.

Is this modular socket waterproof?

Its IP67 rating indicates it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes.

FrontCom® Vario Customisable Service Interface

Protected service interfaces on switch cabinets allow a wealth of service work to be performed during ongoing operation and effectively increase availability and productivity of your plant. Technicians are assured of fast and safe access at any time to the controller in the cabinet, without having to wait for specially authorised technical personnel. At the same time, the risk of misuse or accidents is drastically reduced.

With FrontCom® Vario, Weidmuller have developed a service interface that sets new standards. Compared with conventional service interfaces, FrontCom ® Vario combines several functions in just one single frame, so it only takes up half the space.

The system is compact, simple to install and can be assembled flexibly. There are various data, signal, power modules and attractive housing designs are available, so you can choose a solution that suits your specific requirements.

A number of unique features make FrontCom® Varo into a particularly safe, fast and future-oriented solution. Maintenance and optimisation processes on your plant are made much more efficient and thus less expensive.

FrontCom® Vario configurator tool: http://galaxy.weidmueller.com/frontcom
