Pico Technology Oscilloscope Probe

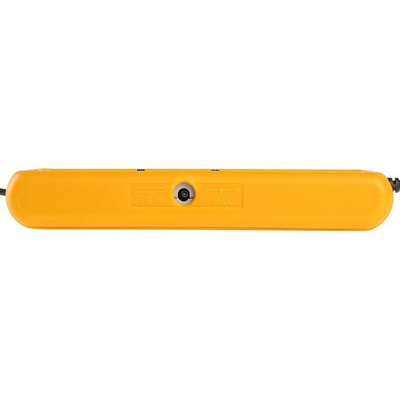

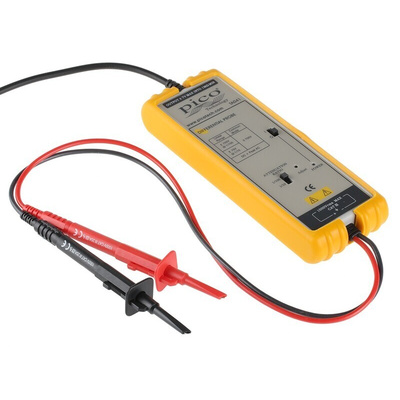

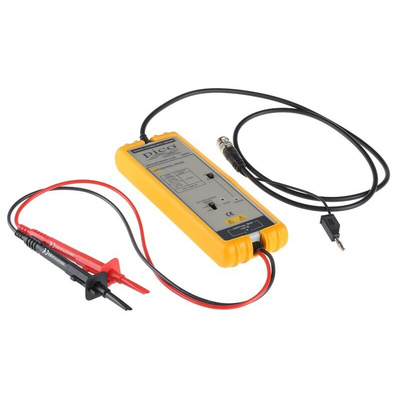

The Pico Technology TA041 oscilloscope probe is an active differential probe, suitable for high common-mode voltage measurement applications up to ±700V. It can be used with a signal speed of up to 25Hz. This differential probe extends the functionality of standard single-ended input oscilloscopes to allow a safe and accurate method of making high voltage differential measurements.

By selecting attenuation ratio 1:10, this oscilloscope probe can measure signals below 70 V to get higher resolution and less noise. Or else, set the attenuation to 1:100.

Features and Benefits

Bandwidth is DC to 25MHz (–3dB)
Attenuation ratio is 10:1/100:1
Accuracy is ±2%
Input impedance is 4Mohm ll5.5pF each side to ground
Differential range is (10:1) ±70V (DC + peak AC) or 70VRMS
Maximum differential is (100:1) ±700V (DC + peak AC) or 700VRMS
Common mode range is ±700V (DC + peak AC) or 700VRMS (10:1 & 100:1)
Absolute maximum voltage is ±1400V (DC + peak AC) or 1000VRMS (10:1 & 100:1)
Swing is ±7V into 2kohm load
Offset (typical) is <±5mV
Noise (typical) is 0.7mVRMS
Source impedance is 1ohm at 1kHz and 8ohm at 20kHz
CMRR (typical) is 86dB at 50Hz and 66dB at 1MHz
Ambient operating temperature ranges between -10°C and 40°C
Power requirement 4xAA batteries or 6VDC/60mA mains adaptor or regulated 9VDC/40mA mains adaptor
Input lead length 450 mm
BNC lead length 950 mm
Dimensions (LxWxH): 170x63x21 mm

Applications

This probe is designed for carrying out differential measurements between two points on the circuit under test. It can be found in:

Safe measurement in power circuit
Acquisition of low speed balanced differential signals found in serial communications buses
Transients in switching power supplies, inverters and motor drives, electronic ballasts and CRT displays
Signals in the milliV range from sensors and other instrumentation

Certifications

IEC-1010.1
IEC-1010.2-031 CAT III
Pollution Degree 2.
