Pico Technology TA Series TA044 Oscilloscope Probe, Active, Differential Type, 70MHz, 1:100, 1:1000, BNC Connector, Щупы для осциллографа

Pico Technology Oscilloscope Probe

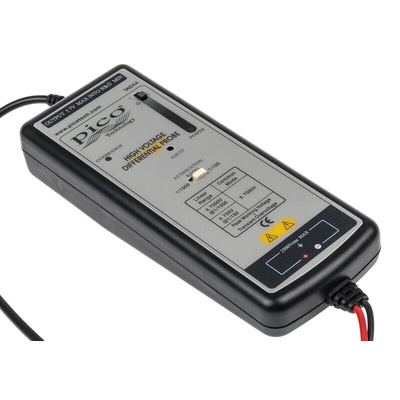

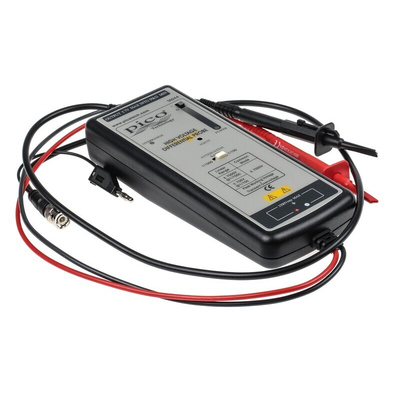

The Pico Technology TA044 oscilloscope probe is an active differential probe, suitable for high common-mode voltage measurement applications up to ±7000V. It can be used with a signal speed of up to 70Hz. This differential probe extends the functionality of standard single-ended input oscilloscopes to allow a safe and accurate method of making high voltage differential measurements.

By selecting attenuation ratio 1:100, this oscilloscope probe can measure signals below 70V to get higher resolution and less noise. Otherwise, set the attenuation to 1:1000.

Features and Benefits

Bandwidth is DC to 70MHz (–3dB)
Attenuation ratio is 100:1/1000:1
Accuracy is ±2%
Input impedance is 10Mohm ll10pF each side to ground
Differential range is (100:1) ±700V (DC + peak AC) or 700VRMS
Maximum differential is (1000:1) ±7000V (DC + peak AC) or 5000VRMS
Common mode range is ±7000V (DC + peak AC) or 2500VRMS (100:1 & 1000:1)
Absolute maximum voltage is ±7000V (DC + peak AC) or 2500VRMS (100:1 & 1000:1)
Absolute maximum voltage is (differential mode) ±7000V (DC + peak AC) or
5000VRMS (100:1 & 1000:1)
Swing is ±7V into 50kohm load
Offset (typical) is <±5mV
Noise (typical) is 0.9mVRMS
Source impedance is (typical) 50ohm
CMRR (typical) is 80dB at 6Hz and 50dB at 1MHz
Ambient operating temperature ranges between -10°C and 40°C
Power requirement 4xAA cells or 6VDC/200mA mains adaptor or regulated 9VDC/120mA mains adaptor

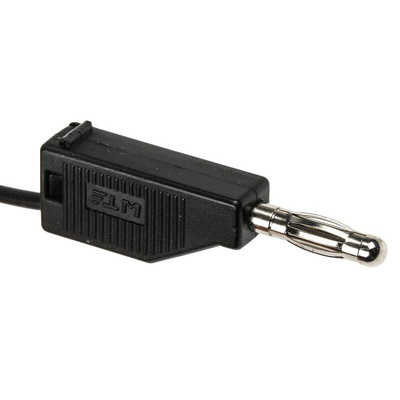

Input lead length 600 mm

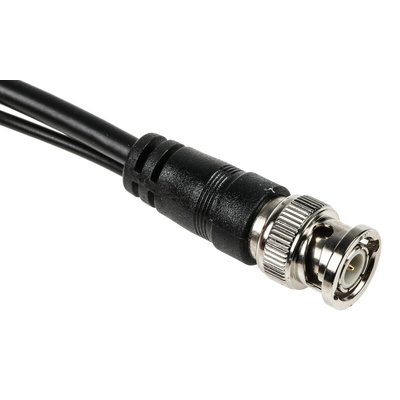

BNC lead length 900 mm
Dimensions (LxWxH): 202 x 83 x 38 mm

Applications

Safe measurement in power circuit
Acquisition of low speed balanced differential signals found in serial communications buses
Transients in switching power supplies, inverters and motor drives, electronic ballasts and CRT displays
Signals in the milliV range from sensors and other instrumentation

Certifications

IEC-1010.2-031 CAT I certified
Pollution Degree 2 certified

Note

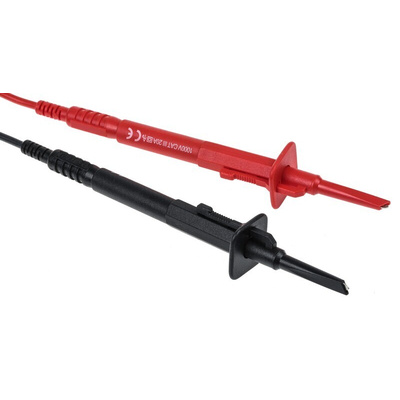

The spring hooks supplied with this probe are rated at 1000 V.

Users Manual TA044

Application Note TA044
