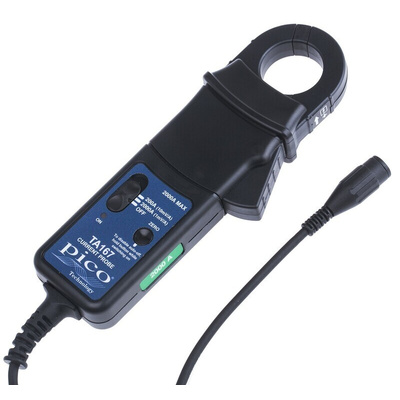

Pico Technology TA167 Oscilloscope Probe, AC/DC Current Type, 20kHz, BNC Connector

TA167 Pico Technology AC/DC Current Probe

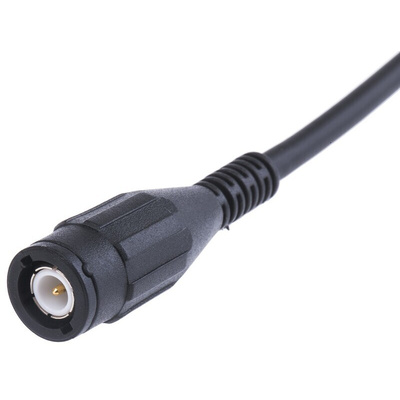

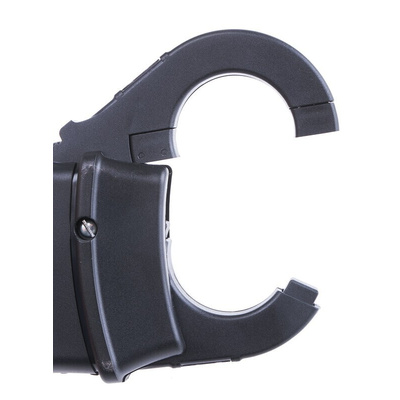

The Pico Technology TA167 is a dual-range current probe capable of measuring AC and DC current signals up to 2000A. It has a 2m long coax terminated cable with safety BNC connector. This current clamp allows you to measure up to 2000A without cutting, disconnecting, or stripping wires. Simply clamp the jaws around the cable to be tested and plug the clamp into your Pico scope.

Features and Benefits

200A mode for better performance at lower currents
Auto power-down facility to save battery life
Additional screening to reduce noise pickup
Advanced Hall Effect sensors for improved sensitivity
High external field rejection
Power supply is 9V alkaline battery
Bandwidth is 20KHz
Current 2000A
Maximum conductor size 32mm
9V Alkaline battery

Applications

Oscilloscope probes are used with oscilloscopes to enable the signals on the circuits being tested to be connected to the oscilloscope so that signals can be measured. These oscilloscope probes can be found in:

Battery testing with Pico diagnostics software
Relative compression testing
Starter motor testing
Alternator output testing
Hybrid and EV electric motor current

Certifications

EN61010-1:2001
EN61010-2-032:2002
EN61010-031:2002
300V CAT III
Pollution degree 2

Manual - TA167
